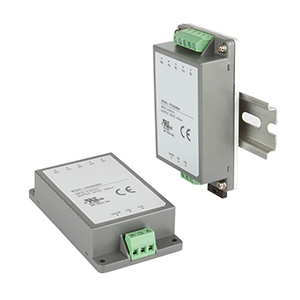

• DTE06 Series

    Features

    • Regulated single & dual outputs from 5VDC to 48VDC
    • Wide 4:1 input range
    • Fully encapsulated chassis mount
    • Optional DIN rail version
    • IEC/UL/cUL62368-1 safety approvals
    • EN55032 class A with no external components
    • Remote on/off
    • 3kVDC isolation
    • -40°C to +105°C operating temperature
    • Full power to 80°C
    • MTBF >4Mhrs (MIL-DHBK-27F, +25°C GB)
    • 3 year warranty

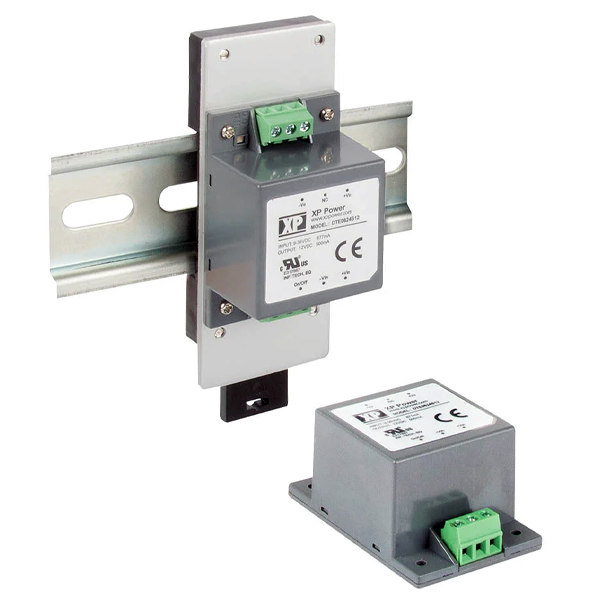

    Available in two wide (4:1) input ranges for nominal 12/24VDC and 24/48VDC, the DTE06 series of encapsulated 6W DC-DC converters are chassis mount as standard or can be ordered with a DIN rail mount. They have screw terminals for ease of connection and an LED provides clear ‘power good’ indication. Remote On/Off is standard and when inhibited the standby current is just 2.5mA. Isolation is 3kVDC input/output providing excellent separation between supply and load. The modules are fully protected against input undervoltage, short circuit and overload conditions. These features, along with a rugged design and wide operating temperature range make the DTE06 series suitable for a variety of commercial and industrial applications.

    Inquiry Info. PDF

  • DTE10 Series

    Features

    • Regulated single & dual outputs from 5VDC to 48VDC
    • Wide 4:1 input range
    • Fully encapsulated chassis mount
    • Optional DIN rail version
    • IEC/UL/cUL62368-1 safety approvals
    • EN55032 class A with no external components
    • Remote on/off
    • 3kVDC isolation
    • -40°C to +105°C operating temperature
    • Full power to 80°C
    • MTBF >4Mhrs (MIL-HBDK-27F, +25°C GB)
    • 3 year warranty

    Inquiry Info. PDF

  • DTE20 Series

    Features

    • Regulated single outputs from 3.3 to 30VDC
    • Wide 4:1 input range
    • Chassis mount with optional DIN rail clip
    • ITE safety approvals
    • EN55032 class A with no external components
    • Remote on/off & voltage trim function
    • 3.0kVDC i isolation
    • Convection cooled
    • -40°C to +100°C operating temperature
    • Full power to 70°C
    • 3 year warranty

    Inquiry Info. PDF

  • DTE40 Series

    Features

    • Fully Encapsulated Chassis Mount
    • Wide 4:1 Input Range
    • ITE Safety Approvals
    • -40 °C to +95 °C Operating Temperature
    • High Efficiency up to 92 %
    • Optional DIN Rail Version
    • Remote On/Off
    • EN55032 Conducted Level A With No External Components
    • 3 Year Warranty

    Inquiry Info. PDF

  • DTE60 Series

    Features

    • Fully Encapsulated Chassis Mount
    • Wide 4:1 Input Range
    • ITE Safety Approvals
    • -40 °C to +95 °C Operating Temperature
    • High Efficiency up to 92 %
    • Optional DIN Rail Version
    • Remote On/Off
    • EN55032 Conducted Level A With No External Components
    • 3 Year Warranty

    Inquiry Info. PDF

  • DTJ15 Series

    Features

    • Regulated single & dual outputs from 3.3V to 30VDC
    • Wide 4:1 input range
    • Chassis mount with optional DIN rail clip
    • UL62368-1 safety approvals
    • EN55032 class A
    • Remote On/Off & voltage trim function
    • 3kVDC isolation
    • -40°C to +100°C operating temperature
    • Full power to 80°C
    • 3 year warranty
    The DTJ series of chassis mount DC-DC power supplies allows for easy and convenient integration into a variety of industrial and commercial applications. The DC-DC power solution is constructed using lightweight materials and includes features such as short circuit protection, input reverse polarity protection and soft start. The wide input range covers nominal voltages of 12V, 24V and 48V.

    Inquiry Info. PDF

  • DTJ20 Series

    Features

    • Regulated single & dual outputs from 3.3V to 30VDC
    • Wide 4:1 input range
    • Chassis mount with optional DIN rail clip
    • UL62368-1 safety approvals
    • EN55032 class A with no external components
    • Remote on/off & voltage trim function
    • 3kVDC isolation
    • -40 °C to +100°C operating temperature
    • Full power to 70°C
    • 3 year warranty

    Inquiry Info. PDF

Total of 7 results
