• Features

    • Compact PCB mount package
    • Encapsulated & open frame versions
    • ITE & household appliance approvals
    • Class II operation
    • Input range 85 to 305VAC

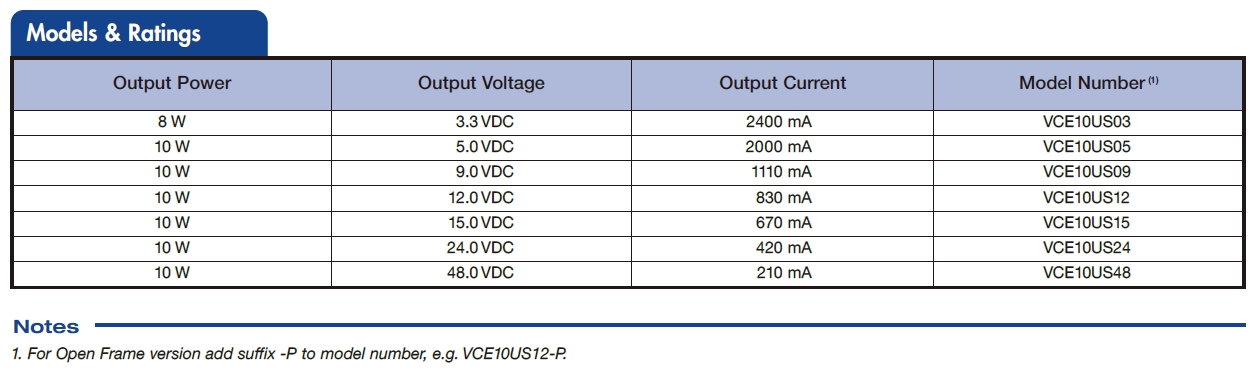

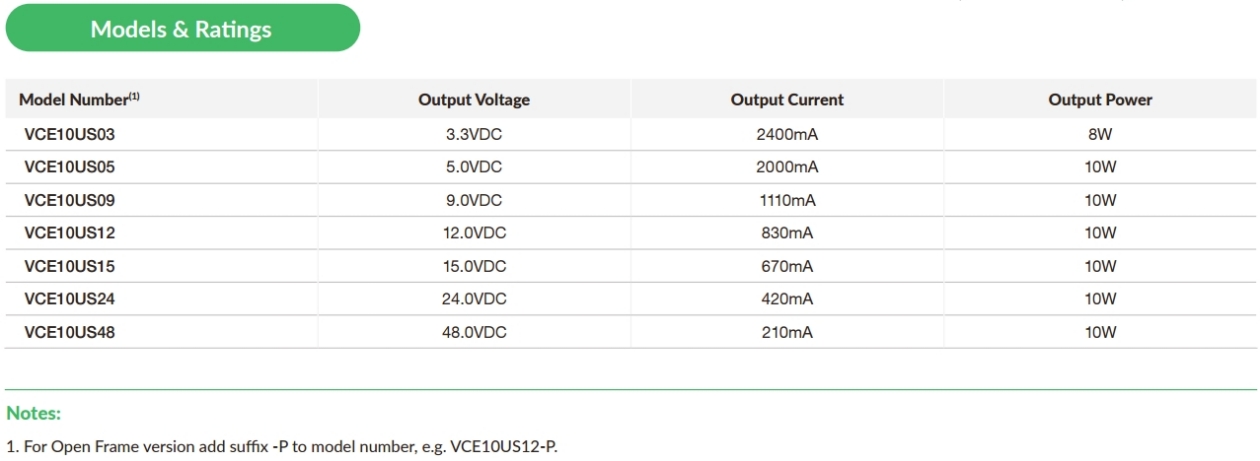

    • Single outputs from 3.3 to 48VDC
    • No load input power <0.3W
    • Low cost
    • -25°C to +70°C operating temperature
    • 3 year warranty

    PDF

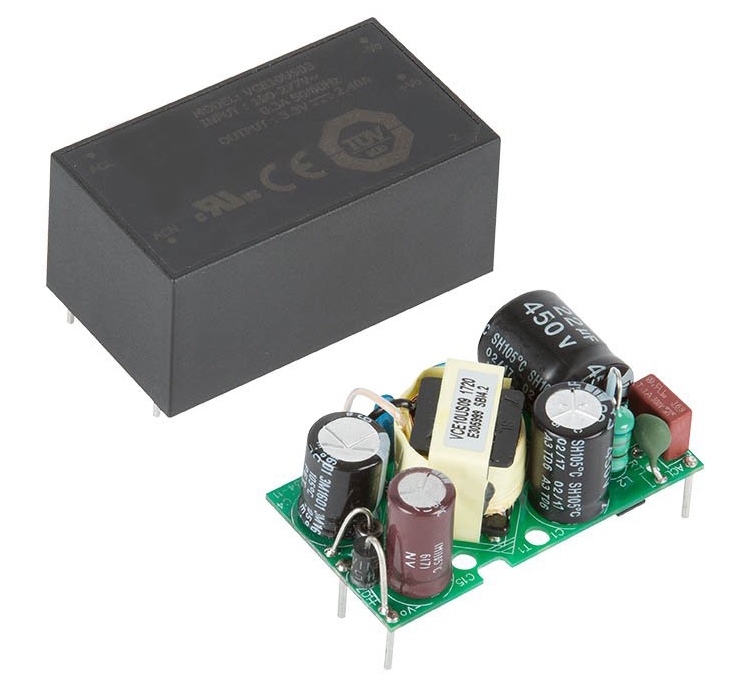

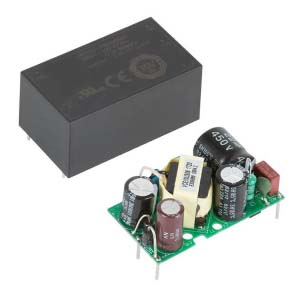

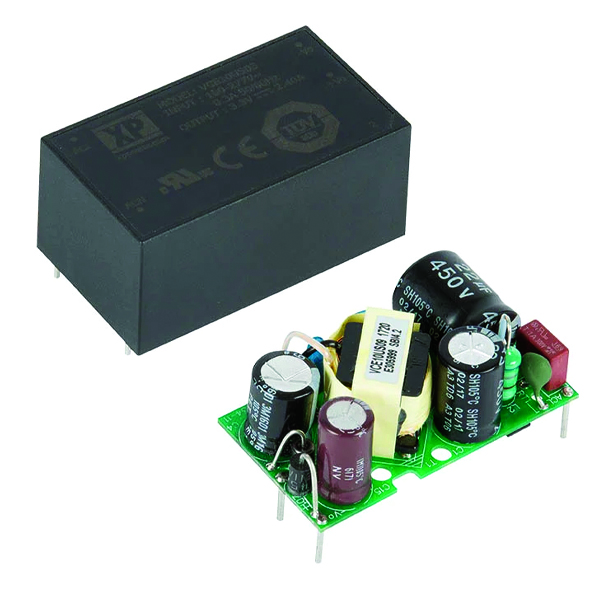

The VCE10 is a series of open frame and encapsulated AC-DC single output power supplies designed for low cost ITE, industrial and domestic applications. The series provides two mechanical options including open frame and encapsulated PCB mount. With approvals to world-wide safety standards including ITE and Household, compliance with class B for conducted and radiated emissions, these class II isolation parts benefit system designers with easy integration into a wide range of applications.
