• Features

    • 85 to 305VAC Input
    • S0ingle Outputs from 3.3 to 48VDC
    • PCB Mount
    • Encapsulated & Open Frame
    • TE & Household Appliance Approvals
    • EN55035 Immunity Standard
    • Class II
    • Low Cost
    • 3 Year Warranty

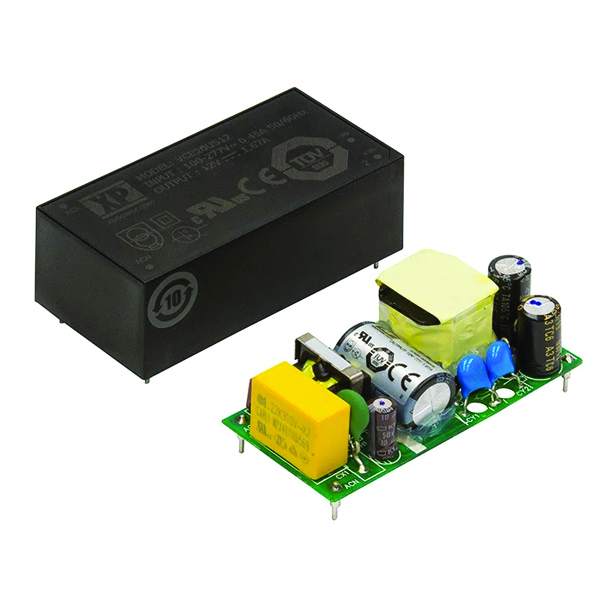

    The VCE20 is a series of open frame and encapsulated AC-DC single output power supplies designed for low cost ITE, industrial and domestic applications. The series provides two mechanical options including open frame and encapsulated PCB mount. With approvals to world-wide safety standards including ITE and Household, compliance with class B for conducted and radiated emissions, these class II isolation parts benefit system designers with easy integration into a wide range of applications.
