• Features

    • Compact Size
    • Medical Approvals

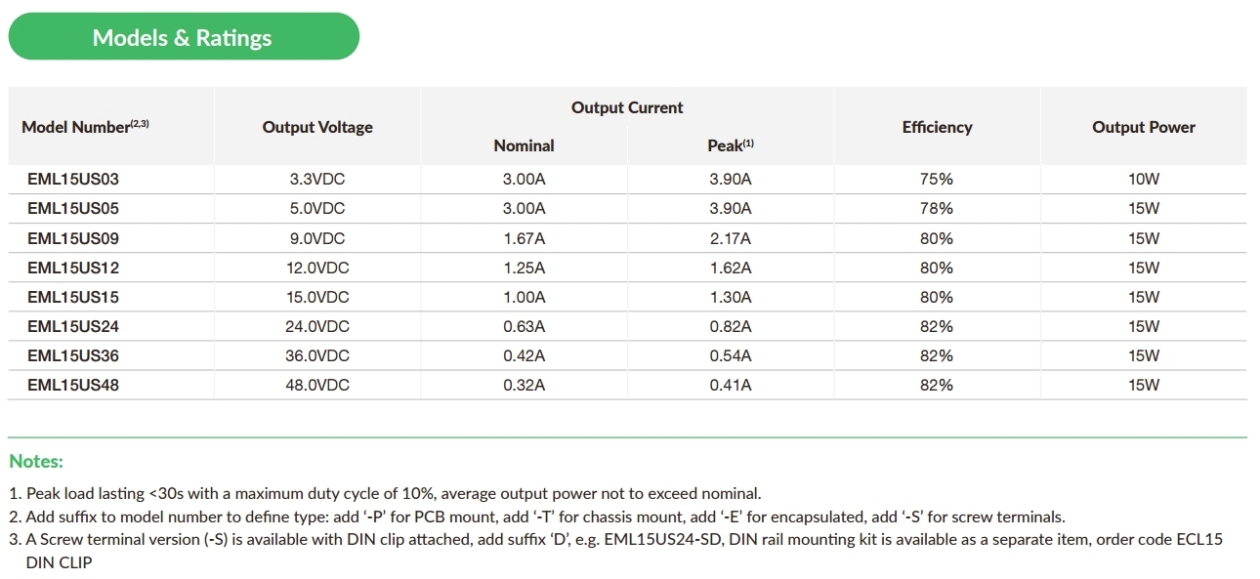

    • Single Outputs from 3.3 to 48 V
    • PCB Mount, Open Frame & Chassis Mount
    • Encapsulated PCB & Chassis Mount
    • Class II
    • Peak Load Capability
    • 3 Year Warranty

    PDF

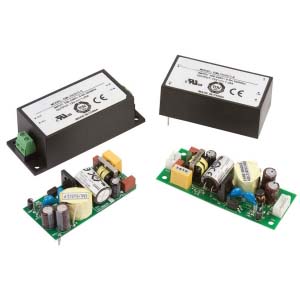

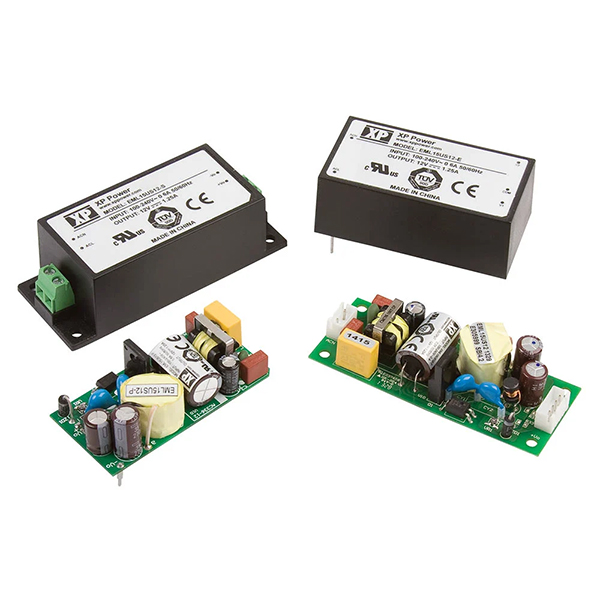

The EML15 is a series of open frame and encapsulated AC-DC single output power supplies
designed for medical applications. The series provides a number of flexible mechanical options
including PCB mount, open frame, chassis mount with screw terminals and a DIN Rail option. With
approvals to world-wide medical safety standards, compliance with class B for both conducted and
radiated emissions and a 130%, 30s peak load capability, these class II isolation parts benefit
system designers with easy integration into the latest healthcare products and applications.
