• Features

    • cTUVus safety approval
    • Designed for long life at full power
    • Excellent dynamic response to load changes
    • Protected against all over load and short circuit conditions
    • EMC surpasses CE requirements:low emission & high immunity
    • Low audible noise: temperature controlled fans
    • Available options: an a log & digital Interfaces, High Speed Programming,
    • Digital Encoders, Sequencer, Power Sink etc.

    PDF

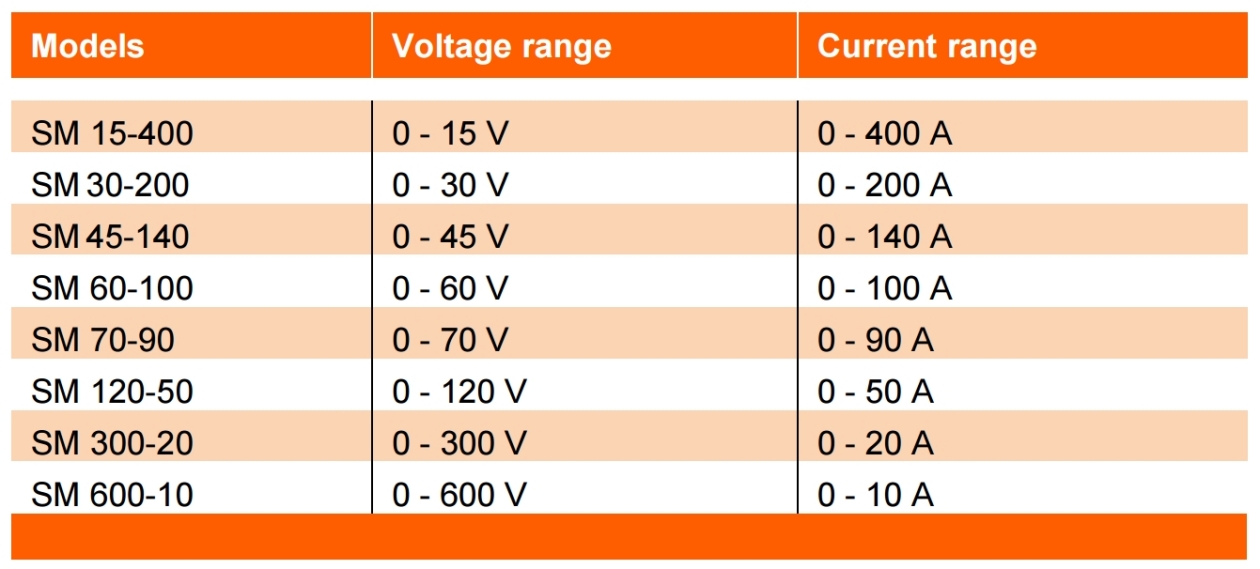

6000W; Output Voltages up to 600VDC; Output Currents up to 400ADC; 3 Phase AC Input; Active PFC; Output Voltage & Current Programmable from 0-100%; Parallel & Series Operation with Voltage & Current Sharing Options: Increased Output Power; High Speed Programming; High Voltage Isolation; Sequencer; Secured Voltage & Current Settings; 2-Quadrant Power Sink; Digital Voltage & Current Setting; High AC Voltage Input Software Control & Interfaces: 0-5V Analogue; Ethernet (incl. sequencer); PROFIBUS; CANBUS; RS232; IEEE488; ISO AMP CARD (isolated analogue)
