• Features

    • Node address setting selectable
    • 600 V galvanic isolation
    • Read back of power supply status signals
    • Voltage and current programming and monitoring
    • Factory installed
    • 14-bit resolution for voltage and current setting and read back
    • Setting the power supply in Shut Down mode
    • Programming and monitoring accuracy < 0.1 %

    PDF

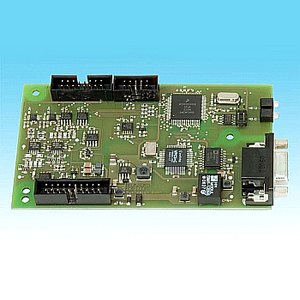

Interface between PROFIBUS DP Bus System and power supply; PROFIBUS DP V0 Standard; Up to 12Mbit/s PROFIBUS DP Communication; PROFIBUS features include Slave in a PROFIBUS-DP network, DP-V0 standard according to IEC 61784 Ed. 1:2002 CPF 3/1, PROFIBUS protocol according to IEC 61158, Slave address range 1-127
