• Features

    • Plug and play for the SM3300 series power supplies
    • Multiple interfaces possible perpower supply
    • Isolated from the output voltage
    • Working voltage 1000V
    • Floating with respect to earth

    PDF

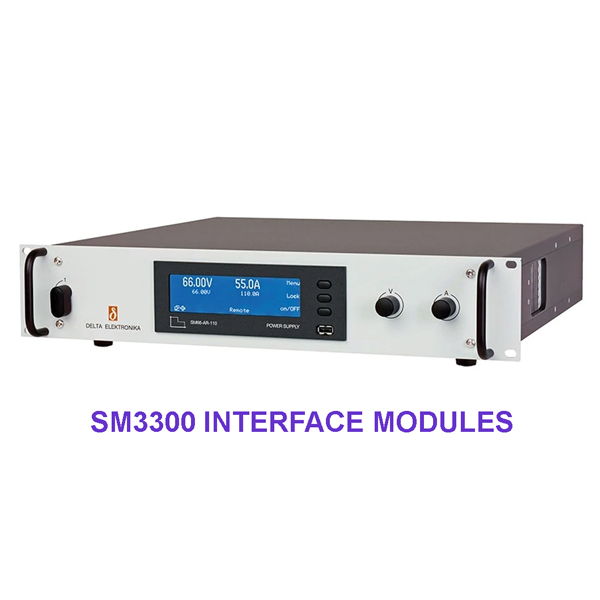

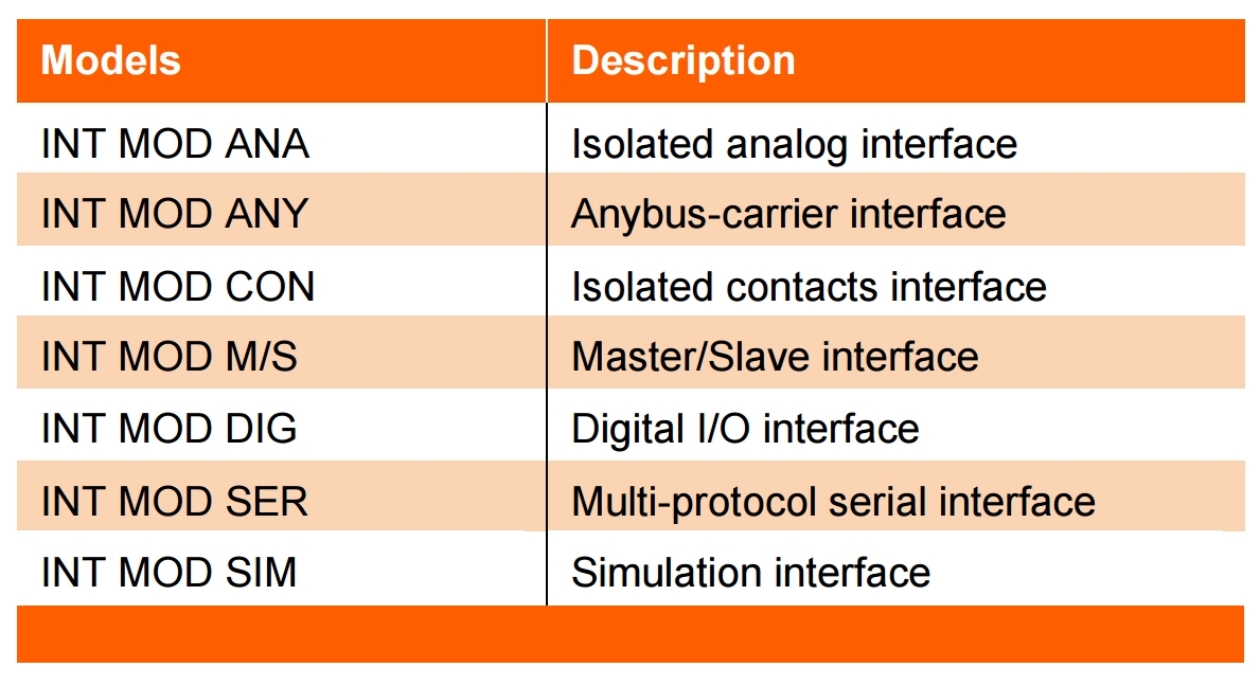

Plug and play interface modules for the SM3300 Programmable Power Supply; Multiple interfaces can be used per power supply; 1000V Isolation from the output voltage; Floating with respect to earth Isolated Analogue Interface: High accuracy ans low drift, 16 bit A/D and D/A conversion, Compatible with other Delta Elektronika 15pin analogue interfaces, Factory calibrated for optimum accuracy Digital I/O Interface: 8 inputs - logic high 2.5-30V, logic low 0V, 8 open drain outputs 0-30V, 200mA max., Programmable via Ethernet or sequences Isolated Contacts Interface: 4 relays with make and break contacts, Additional (floating) interlock with 24V enable system, Programmable via Ethernet Multi-protocol Serial Interface: Multi-protocol RS232, RS485, RS422, USB, Web based configuration, Speeds up to 115.2 kbps
