• Features

    • Controllable output voltage
    • <40ms slew rate
    • 3 Phase 180 to 264VAC input
    • High efficiency, up to 90%
    • 5V, 1A standby output
    • Intelligent fan speed control
    • Fully featured signals & controls
    • I²C interface
    • SEMI F47 compliant
    • 0°C to +70°C operating temperature
    • Full power to +50°C
    • 3 Year Warranty

    PDF

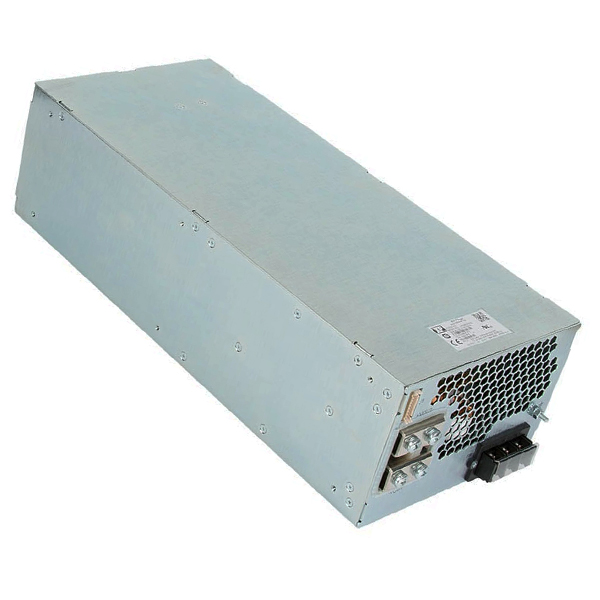

The HPD4K5 series offers users output voltage programming via a 0-5V external signal in a high efficiency, high power density 4.5 kW chassis mount package. Measuring just 15.0” x 4.25” x 6.5”. The HPD4K5 also features remote on/off, current monitor, fault reporting and a power OK signal. The 5V standby output is available whenever the mains supply is present. A PMBus interface is provided for signal & status monitoring.
