• Features

    • 3 Phase 180 to 528 VAC Input - 3 Wire & Earth
    • High Efficiency - up to 94%
    • Programmable Output Voltage (0-105%)
    • Programmable Output Current (0-110%)
    • Parallel Operation
    • Analog & Digital Interfaces
    • Multiple Digital Protocols - PMBus, CANopen, MODBUS & SCPI
    • Fully Featured Signals & Controls
    • Graphical User Interface (GUI)
    • 3 Year Warranty

    PDF

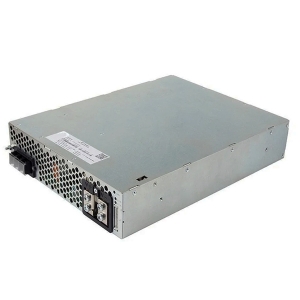

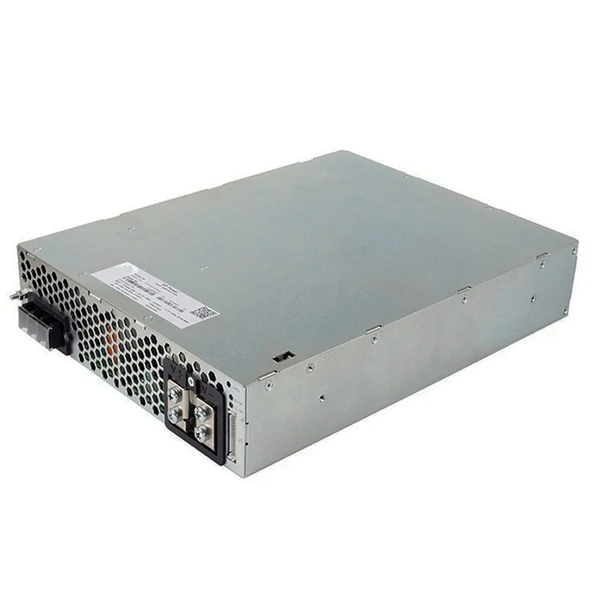

The HPT5K0-L series offers users both output voltage and output current programming, via voltage, I2C PMBus, RS485 and CANopen in a very high efficiency, high power density, low profile, 5 kW chassis mount package. Options are available for RS232 or UART. Measuring just 13.25” x 10.0” x 2.50”, the HPT5K0-L also features active current sharing, remote on/off, remote sense and a power OK signal. The 5V/2A standby output is available whenever the mains supply is present.
