• Features

    • Compact Size
    • Single Outputs from 3.3 to 48VDC
    • Open Frame & Encapsulated PCB Mount
    • <0.3W No Load Input Power
    • Peak Load Capability
    • No External Components Required
    • Class II
    • Low Cost
    • 3 Year Warranty

    PDF

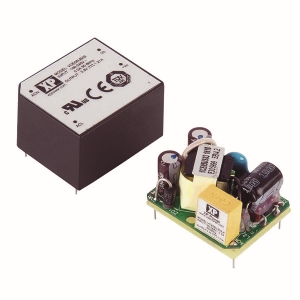

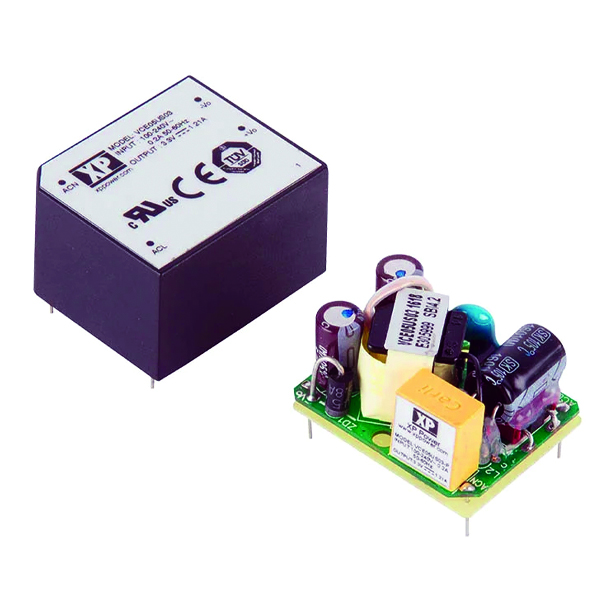

The VCE05 is a series of open frame and encapsulated AC-DC single output power supplies
designed for low cost ITE and Industrial applications. The series provides two mechanical options
including open frame and encapsulated PCB mount. With approvals to world-wide safety
standards, compliance with class B for conducted and radiated emissions and a 130%, 30s peak
load capability, these class II isolation parts benefit system designers with easy integration into a
wide range of applications.
