• Features

    • 150 W Convection/ 225WForced-cooled Ratings
    • 2”by 4”Footprint
    • Low 1.26”Profile
    • 12V Fan Output
    • High Efficiency, upto95%
    • ITE & Medical Approvals
    • High Power Density
    • Less than0.5 W NoLoad Input Power
    • ClassI and II Operation
    • 3 Year Warranty

    PDF

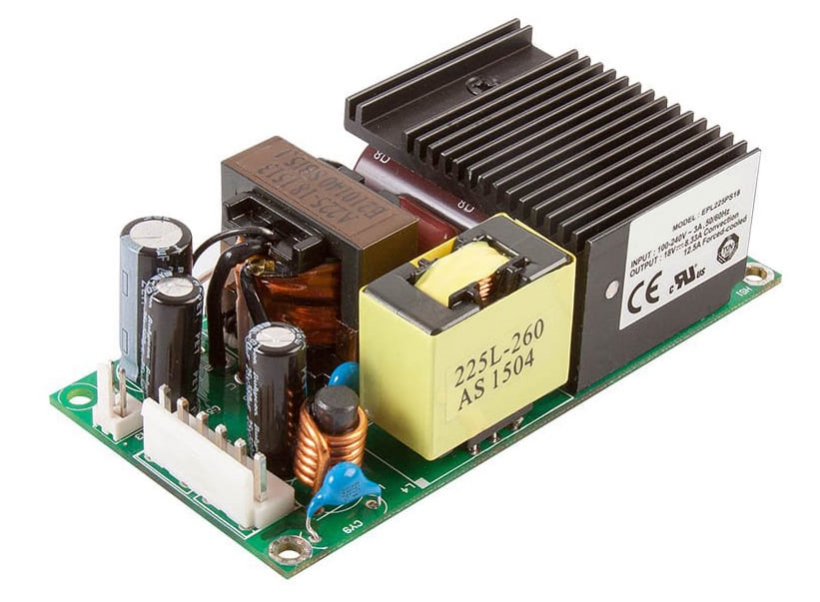

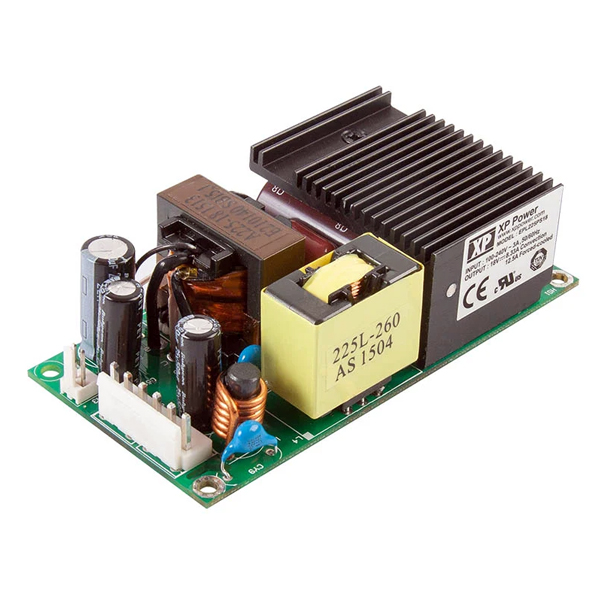

The EPL225 series maximises efficiency across the load range and minimises no load power consumption minimising heat dissipation, reducing running costs and enabling compliance with the latest environmental goals and legislation. Fully approved for ITE and Industrial applications the EPL225 provides up to 150W when convection cooled and up to 225 W when force cooled at just 10 CFM. A 12 V 0.5 A fan supply is included to support force cooled applications. The small footprint, low profile, low noise and comprehensive safety agency approvals allow this versatile product to be used in a wide range of ITE and industrial applications with either Class I or Class II earth arrangements.
