• Features

    • 60 W Convection Rating
    • 2” by 4” Footprint
    • Low 1.04” Profile
    • High Efficiency
    • Medical, ITE and Household Appliance Approvals
    • Class I & Class II Installations
    • High Power Density
    • Less than 0.3 W No Load Input Power
    • 3 Year Warranty

    PDF

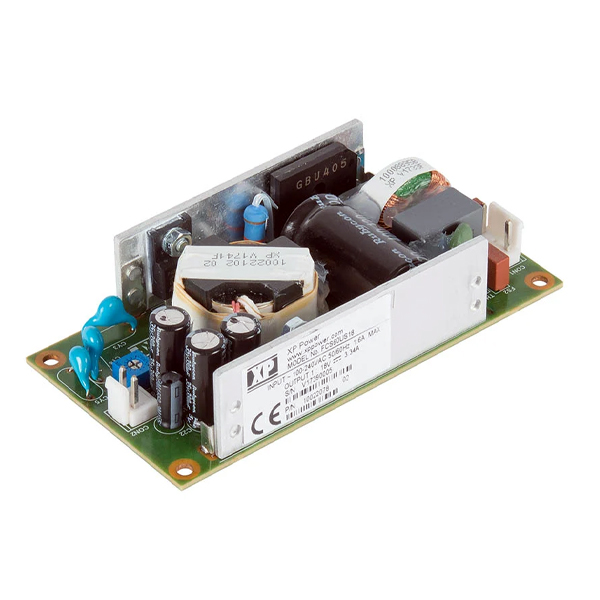

The FCS60 series is designed to minimize the no load power consumption and maximize efficiency to facilitate equipment design to meet the latest environmental legislation. Approved for medical and ITE applications in either Class I or Class II installations, this range of single output AC-DC power supplies are packaged in a low profile 1.04” height with a foot print of just 2” by 4”. The FCS60 provides up to 60W convection-cooled and operates down to 80 VAC. The power supply features two AC line fuses and low leakage currents required by medical applications. The low profile, low noise and safety approvals covering ITE and medical standards allows the versatile FCS60 series to be used in a wide range of applications.
