• Features

    • 600W convection cooled
    • 8.0” x 5.0” x 1.57” U channel
    • Suitable for BF applications
    • ITE & Medical (BF) approvals
    • Class B conducted & radiated emissions
    • Power density 5.97W/in³
    • High efficiency, up to 95%
    • 5V 1.0A standby
    • Remote On/Off
    • -20°C to +70°C operating temperature
    • 3 year warranty

    PDF

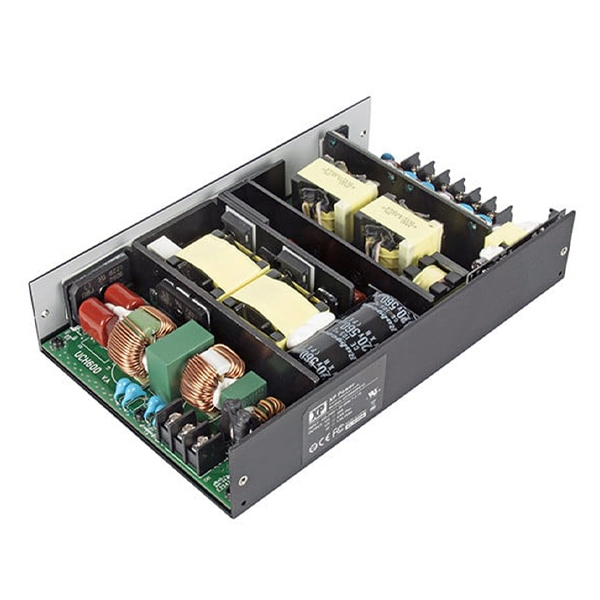

Approved for medical and ITE applications, this range of convection cooled single output AC/DC power supplies are packaged in an ultra compact foot print of just 5.0” by 8.0”. The UCH600 provides up to 600 W convection-cooled leading to very high power density of 9.5 W/in3. A 12 V/0.6 A fan supply is included in the design to faciliate system cooling, if required, along with 5 V/1 A standby output. The power supply contains two fuses and low leakage currents as required by medical device applications. The low profile and safety approvals covering ITE and medical standards along with conducted emissions to EN55011/32 level B allow the versatile UCH600 series to be used in a vast range of applications.
