• Features

    • Low 1.18” Profile U Channel Construction
    • -40 °C to +70 °C Operation
    • 3.12” by 5.0” Footprint
    • 150 W Convection/ 225 W Forced Cooled Ratings
    • Optional 5 V Standby and Remote On/Off
    • 12 V Fan Output
    • Medical and ITE Approvals
    • High Efficiency, up to 95%
    • Less than 0.5 W No Load Input Power

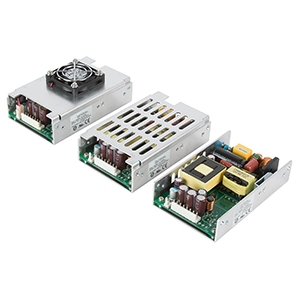

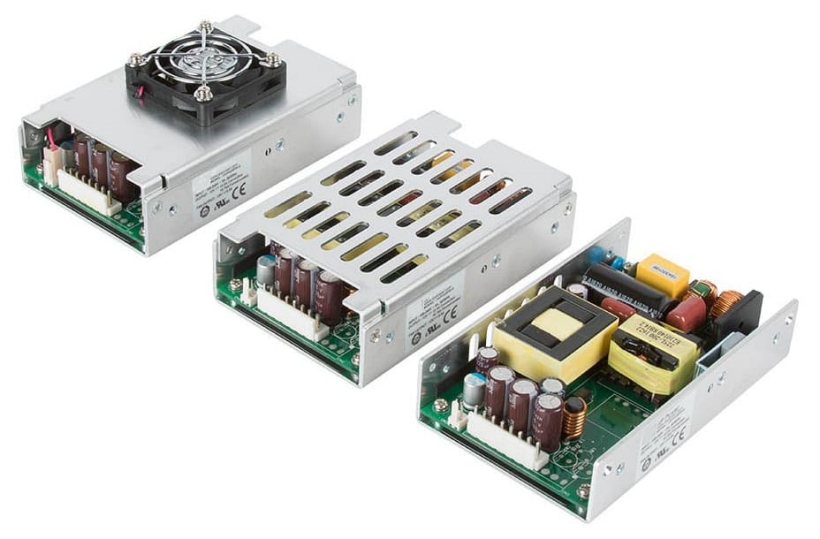

    The UCP225 series is designed to minimize the no load power consumption and maximize efficiency to facilitate equipment design to meet the latest environmental legislation. Approved for medical and ITE applications, this range of single output AC/DC power supplies are packaged in an ultra-low profile 1.18” height with a foot print of just 3.12” by 5.0”. The UCP225 provides up to 225 W force cooled or 150 W convection-cooled leading to very high power densities of 12.2 W/in3 or 8.1 W/in3 respectively. A 12 V, 500 mA fan supply is included in the design which can also be delivered with an optional 5 V/2 A standby output. The power supply contains two fuses and low leakage currents as required by medical applications and is safety approved to operate in a 70 °C ambient. The low profile and safety approvals covering ITE and medical standards along with conducted emissions to EN55011/22 level B allow the versatile UCP225 series to be used in a vast range of applications.
