• Features

    • Regulated Single & Dual Outputs from 3.3 VDC to ±15 VDC
    • World Wide Medical Certification
    • 2:1 Input Range
    • Ultra Compact SIP9 Package
    • 1500 VAC Isolation
    • 1 x MOPP at 250VAC
    • Remote On/Off
    • -20 °C to +100 °C Operation
    • Full Load to +60 °C
    • 3 Year Warranty

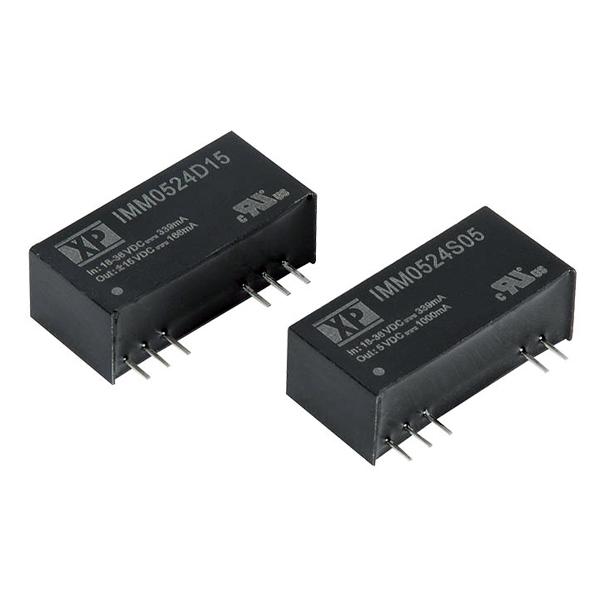

    The IMM05 series of dc-dc converter offers an ultra compact 5W solution facilitating an isolation barrier between input and output with low leakage current required for medical BF & CF applications.
