• Features

    • International medical safety approvals
    • Single & dual unregulated outputs
    • Compact SMD package
    • 4kV VAC isolation reinforced
    • 2 x MOPP at 250 VAC
    • 2 μA patient leakage current
    • Operating temperature -40 °C to +105 °C
    • Full load to 85°C convection
    • Tape & reel package available
    • Optional water washable versions
    • 3 year warranty

    PDF

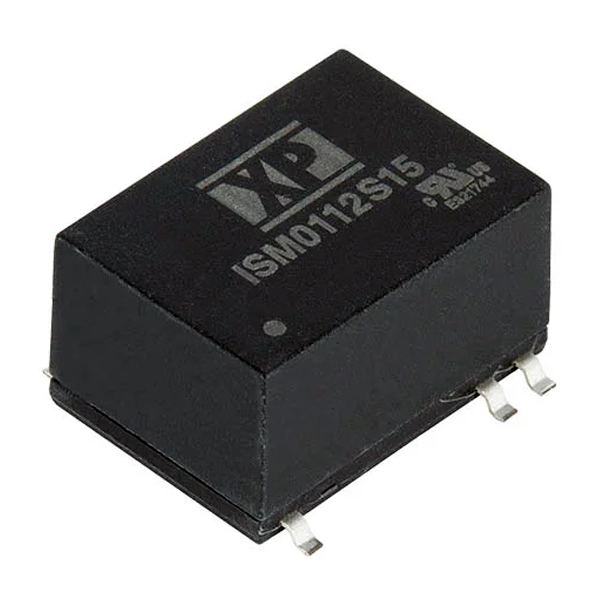

The ISM01 provides a compact cost effective SMD solution for healthcare applications providing 2 MOPP and IEC60601-1 compliance. Features include a high operating temperature, low leakage current, reinforced insulation and short circuit protection.
