• Features

    • International medical safety approvals
    • Single & dual unregulated outputs
    • Compact SMD package
    • 4kV VAC reinforced isolation
    • 1 x MOPP at 300 VAC
    • 2 μA patient leakage current
    • Operating temperature -25 °C to +105 °C
    • Full load to 60°C convection
    • Tape & reel package available
    • 3 year warranty

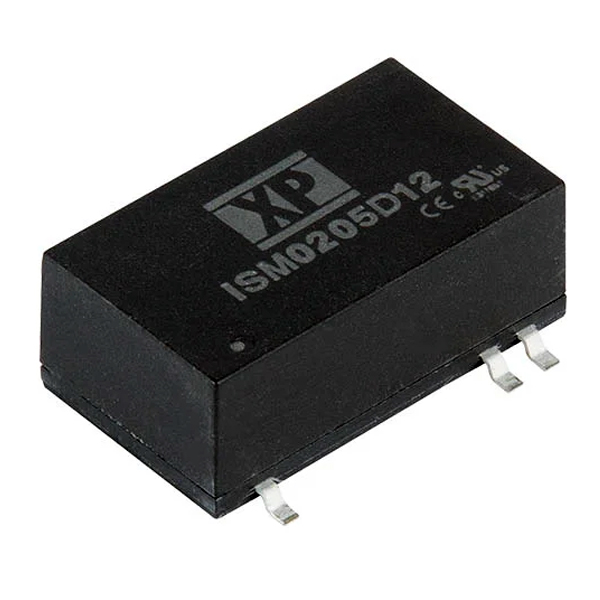

    The ISM02 provides a compact cost effective SMD solution for healthcare applications providing 1 MOPP, 2 MOOP and IEC60601-1 compliance. Features include a high operating temperature, low leakage current, reinforced insulation and short circuit protection.
