• DC UPS Power Supplies up to 300 Watts

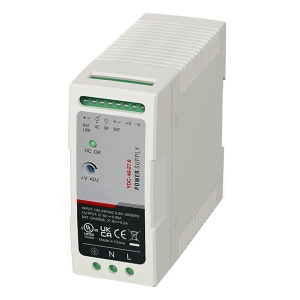

  • YDC40

    Features

    • Universal AC input / Full range
    • Cooling by free air convection
    • High operating temperature up to 70 ℃
    • Higher Efficiency
    • Protection:Short circuit/Overload/Over voltage
    • Three Years Warranty
    The AC/DC DIN rail type security power are designed with slim plastic housing and for full range AC input from 90V AC to 264V AC，and supplies 13.8VDC and 27.6VDC at output, respectively.They have high efficiency and operate in wide temperature range. In addition to the key protection features such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse). the alarm signal for AC OK and battery low signaling is provided, via TTL open collector output for the standard model (via relay contact output as the optional model), to facilitate the system design.

    Inquiry Info. PDF

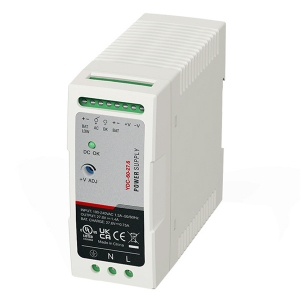

  • YDC60

    Features

    • Universal AC input / Full range
    • Cooling by free air convection
    • High operating temperature up to 70 ℃
    • Higher Efficiency
    • Protection:Short circuit/Overload/Over voltage
    • Three Years Warranty
    The AC/DC DIN rail type security power are designed with slim plastic housing and for full range AC input from 90V AC to 264V AC，and supplies 13.8VDC and 27.6VDC at output, respectively.They have high efficiency and operate in wide temperature range. In addition to the key protection features such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse). the alarm signal for AC OK and battery low signaling is provided, via relay contact output as the model, to facilitate the system design.

    Inquiry Info. PDF

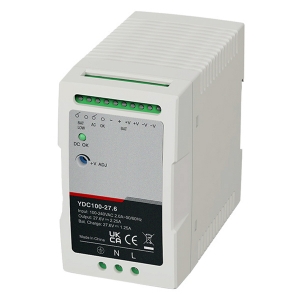

  • YDC100

    Features

    • Universal AC input / Full range
    • Cooling by free air convection
    • High operating temperature up to 70 ℃
    • Higher Efficiency
    • Protection:Short circuit/Overload/Over voltage
    • Three Years Warranty
    The AC/DC DIN rail type security power are designed with slim plastic housing and for full range AC input from 90V AC to 264V AC, and supplies 13.8VDC and 27. 6VDC at output, respectively. They have high efficiency and operate in wide temperature range. In addition to the key protection features such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse). the alarm signal for AC OK and battery low signaling is provided, via relay contact output as the model, to facilitate the system design.

    Inquiry Info. PDF

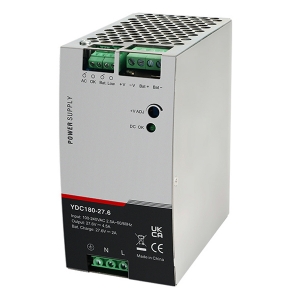

  • YDC180

    Features

    • Universal AC input / Full range
    • Cooling by free air convection
    • High operating temperature up to 70 ℃
    • Higher Efficiency
    • Protection:Short circuit/Overload/Over voltage
    • Three Years Warranty
    Yingjiao's AC/DC DIN rail type security power are designed with slim plastic housing and for full range AC input from 90V AC to 264V AC, and supplies 13.8VDC and 27.6VDC at output, respectively.They have high efficiency and operate in wide temperature range. In addition to the key protection features such as overload protection, over voltage protection, battery low cut off,and battery reverse polarity protection (by fuse). the alarm signal for AC OK and battery low

    Inquiry Info. PDF

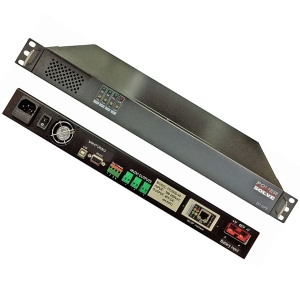

  • PFD Series 19

    The PFD Series is a no break system to provide constant power without interruption. The multi channel outputs use independent fuses for protection. The quick response short circuit protections limits the maximum output current and prevents the fuse from blowing. The smart interface helps the user to monitor the battery condition, input power condition and load status.
    PFD Series 150 or 300 Watts. 19” Rack Mount Battery Backed AC-DC power supply. 12V, 24V or 48V DC outputs. Intelligent battery condition monitoring. USB, RS232 interfaces and optional SNMP Card.

    Inquiry Info. PDF

Total of 15 results
