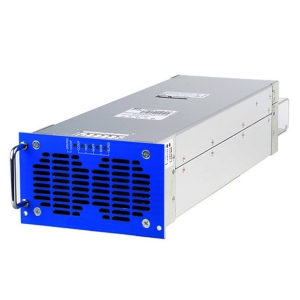

Switch Mode Rectifiers and Rack Mounting Power Supplies

Features

• Powered by the compensation technology, the rectifier module provides a power factor of up to 0.99.
• The range of operating AC input voltage is extended to 90-176 Vac;60Hz.
• Using the full-bridge soft switch technology, the rectifier module delivers efficiency up to 92%.
• Powerful battery management: Load power-off and low-voltage protection (LVLD+LVBD) and secondary power-off; temperature compensation, automatic even and float charging management; automatic voltage adjustment; power capacity calculation; online battery testing etc.
• Non-intrusive hot swapping shortens the time for rectifier module replacement to less than 1 minute.
• Supports flexible networking through various communication ports (e.g. RS485 and dry contact) to enable local and remote monitoring without human intervention;
• Mature AC/DC lightning protection, making it suitable for use in thunder-prone areas;
• A complete set of fault protection and alarm features;
• Front access servicing; supports space-efficient wall mounting;
• Ultra-low radiation: Based on a cutting-edge EMC design, the rectifier module fully complies with the requirements specified in Limits and
• Methods of Measurement of Electromagnetic Compatibility for Telecommunication Power Supply Equipment YD/T983);
• Safe and reliable: compliant with EN60950 and GB4943
• Remote monitoring SNMP V2 (OPTION)
• Hot-Swappable
• 4 sets dry contact provided

Features

• AC input voltage range: 90VAC~30SVAC;
• Active power factor compensation, PF≥0.99;
• Efficiency for normal module: 92%;
• Efficiency for high efficient module: 95%;
• Digital boost by software, boost tolerance≤±5%;
• AC harmonic current distortion≤5%;
• Working temperature: -40°C ~75 °C ;
• Accord with UL, CE standard requirements;
• Advanced EMC design, low radiation, meet CE & FCC Class B requirements;
• Reliable operation with full system status detection, control, alarm and protection functions.
• All positive interface operation, plug and play, which makes the operation and maintenance more safe, convenient and fast.
• Perfect battery management functions, has the temperature compensation, battery protection, charging current limit and battery capacity calculation functions.
• CAN bus distributed digital control, intelligent internet monitoring design, providing a variety of communication interfaces such as RS-232, RS-485, SNMP telecom and dry contact alarm interface, flexible networking, remote monitoring, unattended.

Features

• Programmable output voltage (0-105%)
• 1.5kW high line 1.2kW low line fan cooled
• 299.7mm x 101.6mm footprint, 43.33mm profile
• Regulated single outputs 12 to 56VDC
• Input range 85 to 264VAC
• 1U blind mate, hotswap, redundancy

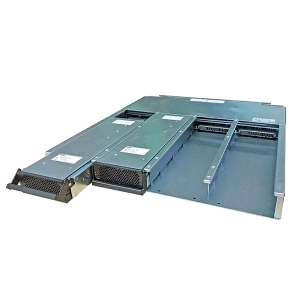

• 1U 19″ subrack accepts up to 4 x GFR's (6kW)
• 56VDC Power over Ethernet compatible model
• AC OK, DC OK, inhibit, enable, 5VDC standby
• Current share & I²C interface
• 3 year warranty

Features

• Optional LAN interface plug & play
• 3D Heat Dissipation
• CSB Current Share Bus paralleling 7 units
• Inhibit for safe interlocking
• Remote Shutdown
• Sense mode
• Current Monitoring 0-5V
• Power Good Relay DC-ok
• Precise dynamics on load change
• Series & parallel operation up to 100kW
• EMC conducted class B, radiated class A
• Efficiency 92-94%
• PFC Powerfactor 0,99
• Variable controlled fans from Papst
• Long lifetime under hard operation
• Solid 2U and 3U subframes available

Features

• Optional LAN interface plug & play
• 3D Heat Dissipation
• CSB Current Share Bus paralleling 7 units
• Inhibit for safe interlocking
• Remote Shutdown
• Sense mode
• Current Monitoring 0-5V
• Power Good Relay DC-ok
• Precise dynamics on load change
• Series & parallel operation up to 100kW
• EMC conducted class B, radiated class A
• Efficiency 92-94%
• PFC Powerfactor 0,99
• Variable controlled fans from Papst
• Long lifetime under hard operation
• Solid 2U and 3U subframes available
