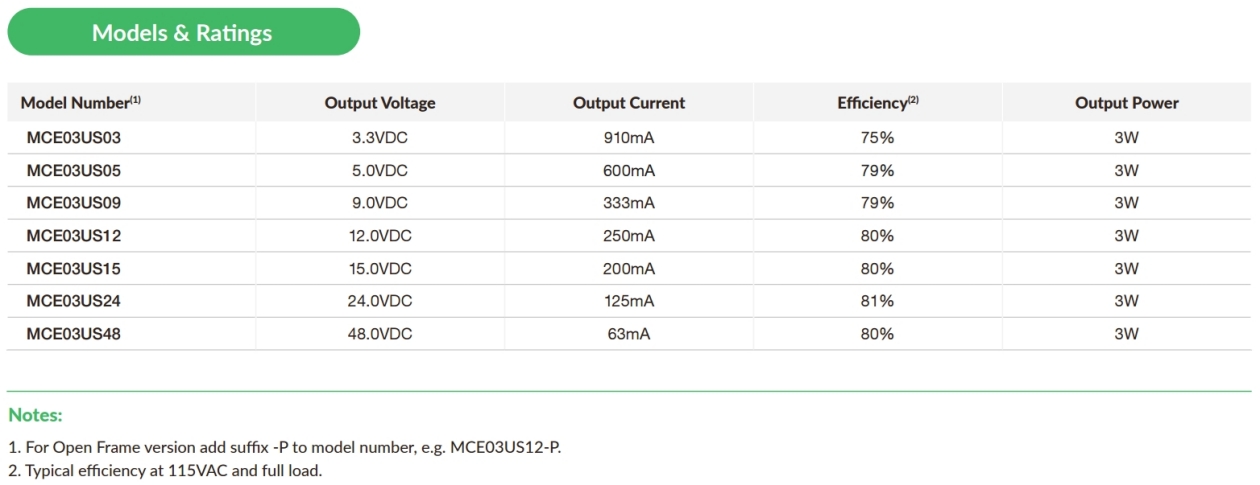

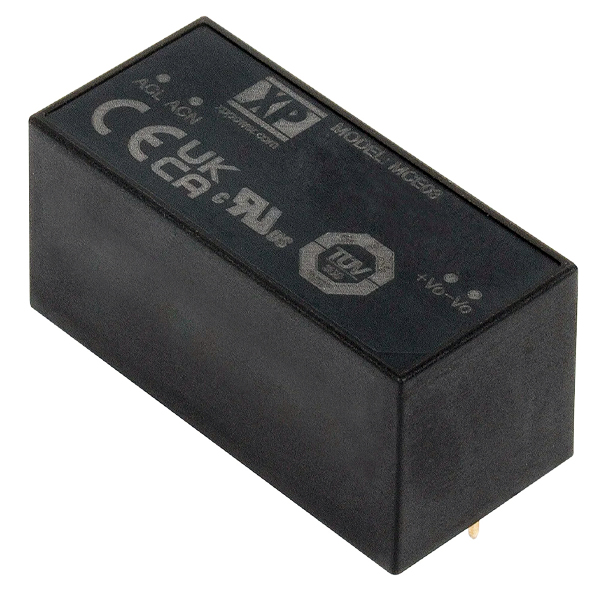

Products AC to DC Converters Low to Medium Power Switch Mode Power Supplies Open PCB versions from 5 watts to 350 watts MCE03 Features Single outputs 3.3V to 48VDC Input range 80 to 264VAC Available in open frame and encapsulated formats High efficiency, up to 81% 4kVAC input to output isolation Class B conducted and radiated emissions IEC 60601-1 medical safety agency approvals, 2 x MOPP IEC class II insulation rating -25°C to +70°C operating temperature Overvoltage, overload and short circuit protection The MCE03 series of PCB mount single output AC-DC medical power supplies delivers a power output of 3W and offers single output voltages ranging from 3.3V to 48VDC. The MCE03 series, which is available in open-frame and encapsulated mechanical formats, is specifically designed for medical applications with 2 x MOPP isolation and is approved for Class II applications.With world-wide medical safety approvals, class B compliance for conducted and radiated emissions, high efficiency, high reliability, 4kVAC isolation, the MCE series benefits system designers with easy integration into a wide range of BF rated medical applications including imaging, patient treatment, surgical equipment and home healthcare applications. PDF Please write down your comment on this product, and click Add to Inquiry List for inquiry Add to Inquiry List Review Inquiry List Back
