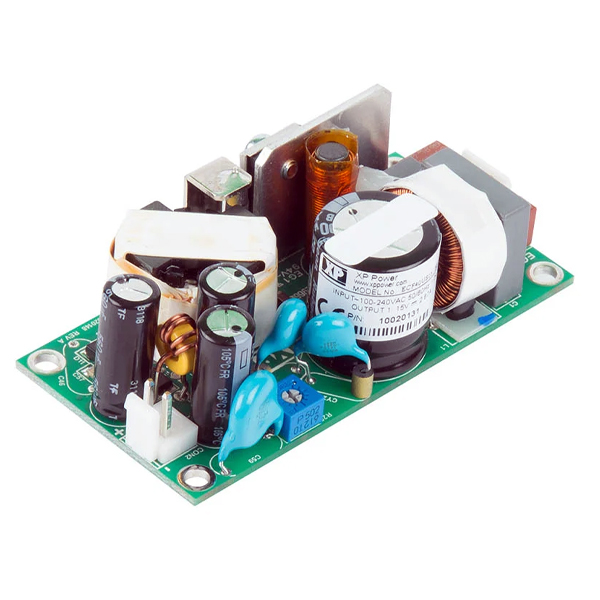

ECF40

The ECF40 series is designed to minimize the no load power consumption and maximize efficiency to facilitate equipment design to meet the latest environmental legislation. Approved for medical (2 x MOPP) and ITE applications in either Class I or Class II installations and has two AC line fuses and low leakage currents required by medical applications.

This range of single output AC-DC power supplies are packaged in a low profile 28.0mm height with a foot print of just 76.2 x 38.1mm. The ECF40 provides up to 40W convection-cooled over the full 90-264VAC input range, and operates down to 80VAC with minimal de-rating. The low profile, low noise and safety approvals covering ITE and medical standards allows the versatile series to be used in a wide range of applications.
