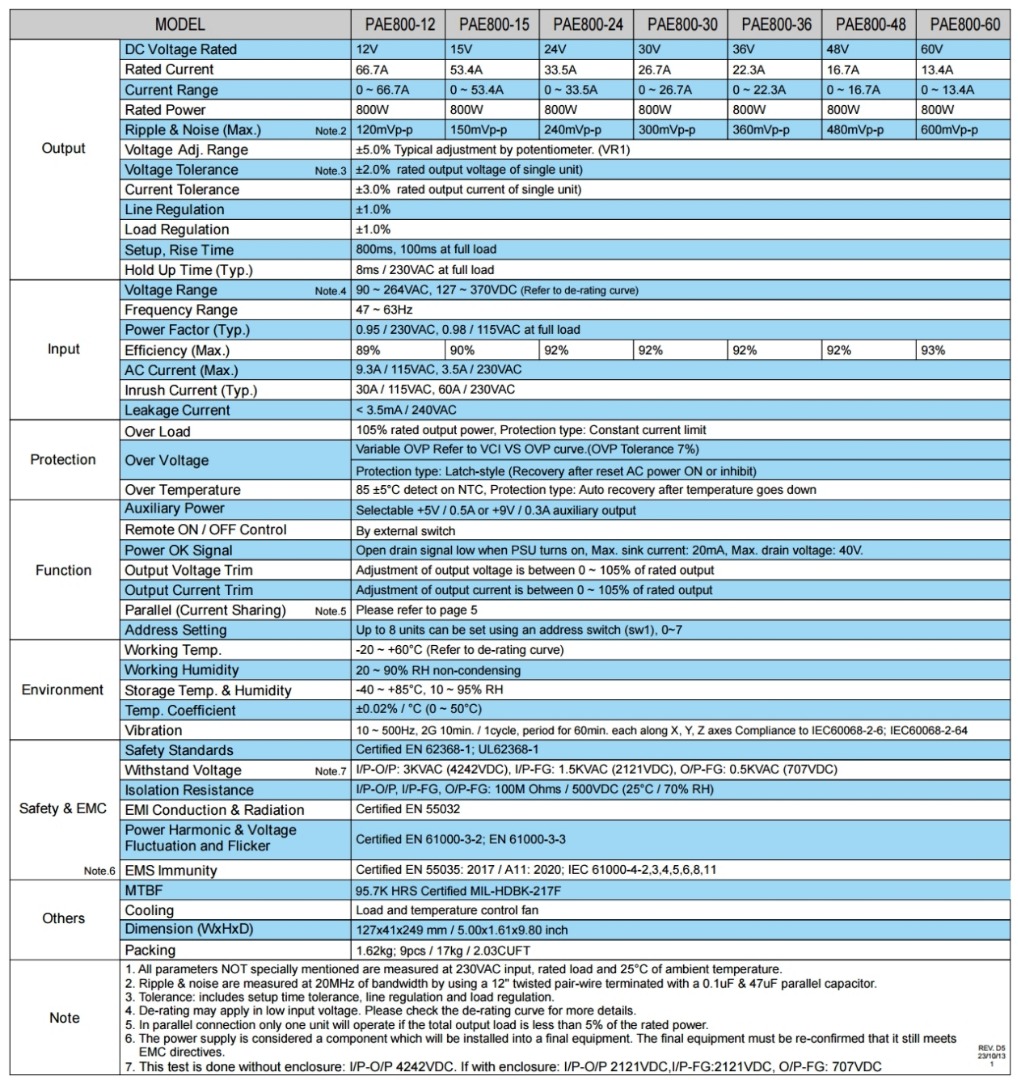

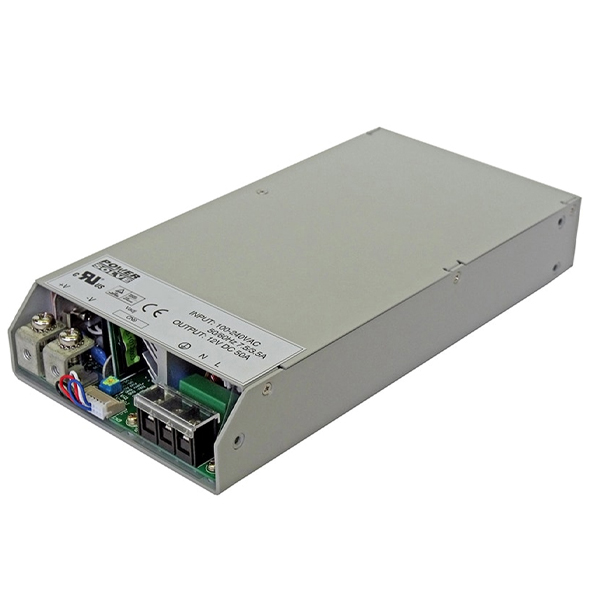

PAE800 Series

Features

• Universal AC input / Full range
• Programmable output Voltage (0% ~ 105%)
• Programmable output Current (0% ~ 105%)
• Forced current sharing at parallel operation (Refer to pg. 5 for connection diagram)
• Constant current limit
• Selectable +5V / 0.5A or +9V / 0.3A auxiliary output
• Global control via UART (5V TTL)
• Remote setting multiple PSU via UART (5V TTL), I²C or RS485 (Optional)
• Power OK signal
• Remote ON / OFF, Remote sense function
• Protection: OVP, OLP, OTP, Fan failure
• Built-in active PFC Function
