• PAE1500 Series

    PAE1500 Series

    Features

    • Universal AC input / Full range
    • Programmable output Voltage (0% ~ 105%)
    • Programmable output Current (0% ~ 105%)
    • Forced current sharing at parallel operation
    • (Refer to pg. 5 for connection diagram)
    • Constant current limit
    • Selectable +5V / 0.5A or +9V / 0.3A auxiliary output
    • Global control via UART (5V TTL)
    • Remote setting multiple PSU via UART (5V TTL), I²C & RS485 (Optional)
    • Power OK signal
    • Remote ON / OFF, Remote sense function
    • Protection: OVP, OLP, OTP, Fan failure
    • Built-in active PFC Function

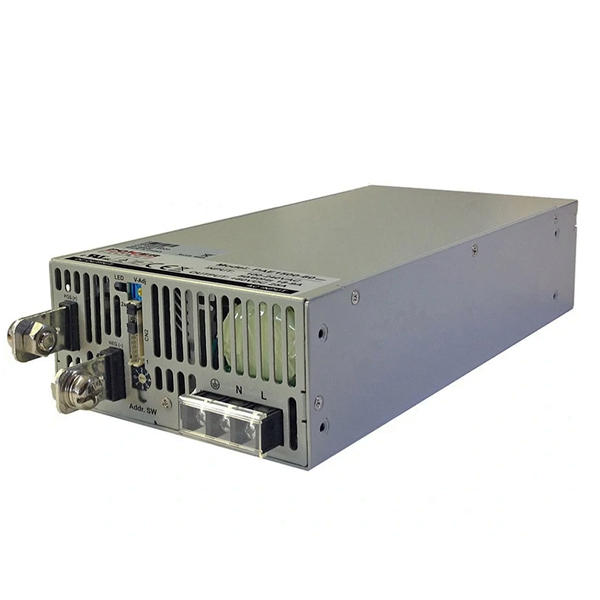

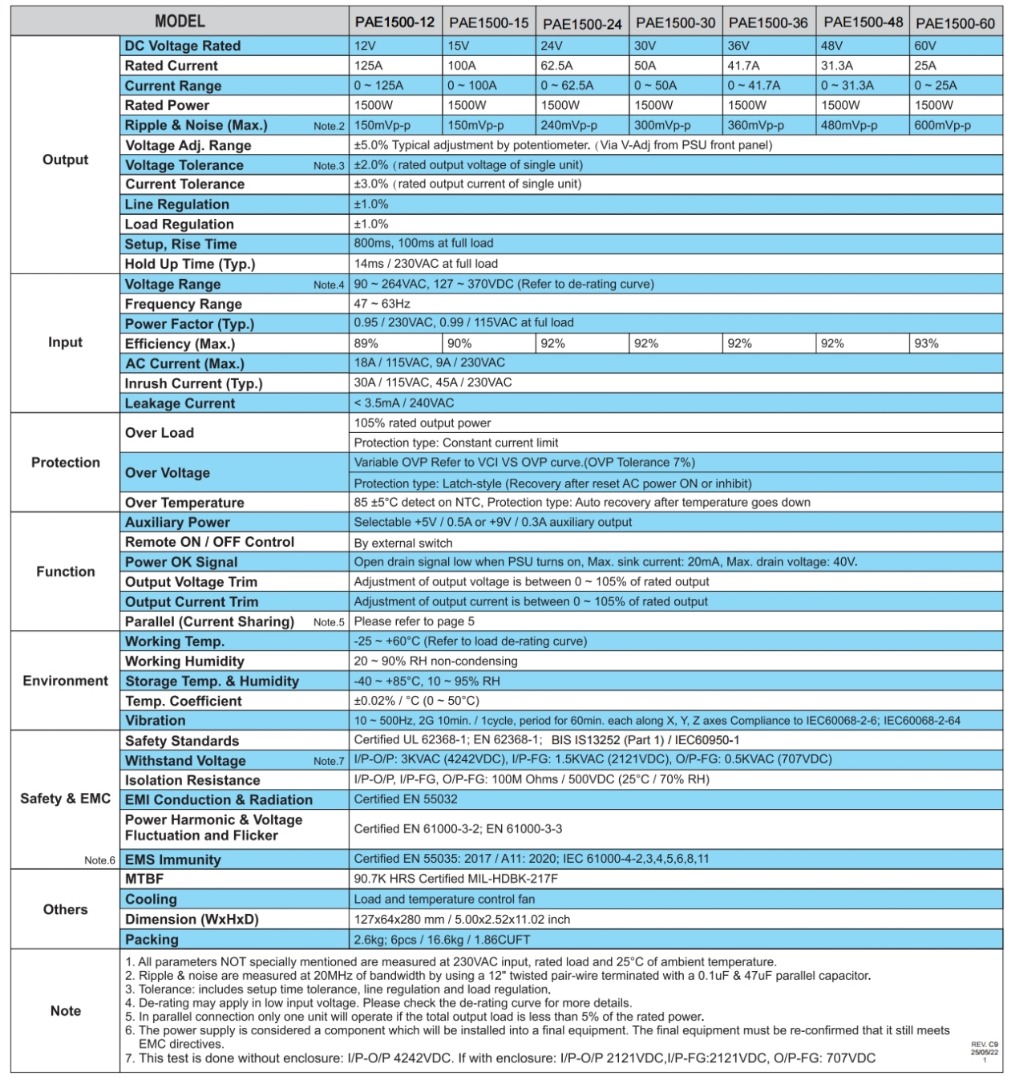

    PAE1500 Series 1500 Watts, Metal Fan Cooled Enclosure, 90-264VAC or 127-370V DC Input. Seven output model versions fully programmable for voltage and current from 0-12VDC 0-125A to 0-60VDC 0-25A. Analogue programming with optional digital with CT Series

    PDF

PAE1500 Series
