• Open PCB from 3W to 550W

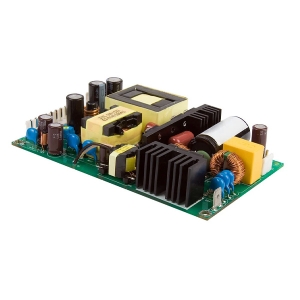

  • ECP225-A Series

    Features

    • 225W fan cooled 150W convection cooled
    • 127.0 x 76.2mm (5″x 3″) footprint, 25.4mm profile
    • Regulated single outputs 12V to 48VDC
    • Input range 85 to 264VAC
    • High efficiency – up to 94%
    • Medical (2 x MOPP) & ITE approvals
    • 4.0kVAC input to output isolation
    • <0.5W no load input power
    • 12VDC 0.5A fan supply
    • 5VDC 1A (convection) 5VDC 2A (fan) standby
    • -20°C to +70°C operating temperature
    • Full load to +50°C
    • 3 year warranty
    ECP225-A Series, 225 Watts, Open PCB, 5 Models 12V to 48V DC outputs

    Inquiry Info. PDF

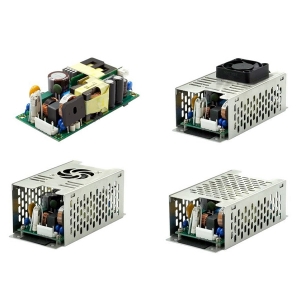

  • EPL150 Series

    Features

    • 150W fan cooled 100W convection cooled
    • 101.6 x 50.8mm (4″x 2″) footprint, 25.1mm profile
    • Regulated single outputs 12 to 48VDC
    • Input range 80 to 264VAC
    • High efficiency – up to 94%
    • Medical (BF) & ITE approvals
    • 4.0kVAC input to output isolation
    • Class I & class II operation
    • <0.5W no load input power
    • 12V/0.5A fan supply
    • -20°C to +70°C operating temperature
    • Full load to +50°C
    • 3 year warranty
    EPL150 Series, 150 Watts, Open PCB, 7 Models 12V to 48V DC Outputs

    Inquiry Info. PDF

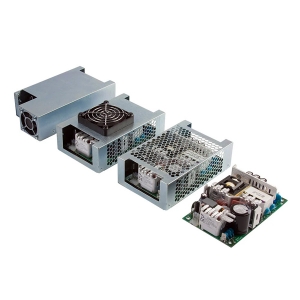

  • EPL225 Series

    Features

    • 225W fan cooled 150W convection cooled
    • 101.6 x 50.8mm (4” x 2”) footprint 32.3mm profile
    • Regulated single outputs 12V to 48VDC
    • Input range 85 to 264VAC
    • High efficiency – up to 95%
    • Medical (2 x MOPP) & ITE approvals
    • 4.0kVAC input to output isolation
    • Class I & class II applications
    • <0.5W no load input power
    • 12VDC 0.5A fan supply
    • -20°C to +70°C operating temperature
    • Full load to +50°C
    • 3 year warranty
    EPL225 Series, 225 Watts, Open PCB, 7 Models 12V to 48V DC Outputs

    Inquiry Info. PDF

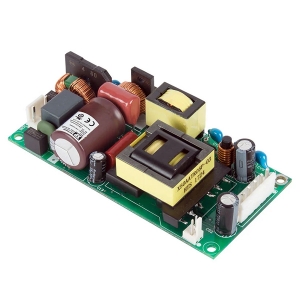

  • VFB150 Series

    Features

    • Single outputs from 12V to 48VDC
    • 90 to 264VAC input range
    • 100W convection, 150W fan cooled rating
    • High efficiency – up to 91%
    • 3kVAC input to output isolation
    • 12VDC 0.3A fan supply
    • 0.15W no load input power
    • Overcurrent, overvoltage and short-circuit protection
    • Operating temperature range: -10°C to +70°C
    • 3 year warranty

    The VFB150 is a series of open frame AC-DC single output power supplies with 100W convection and 150W fan cooled ratings.

    This range of cost-competitive, high efficiency, single output AC-DC power supplies are packaged in an industry standard 127.0 x 76.2mm (5.0″x 3.0″) footprint making them suitable for industrial and information technology applications.

    With world-wide industrial safety approvals, compliance with class B for conducted and radiated emissions, the VFB150 benefits system designers with easy integration into a wide range of applications.

    Inquiry Info. PDF

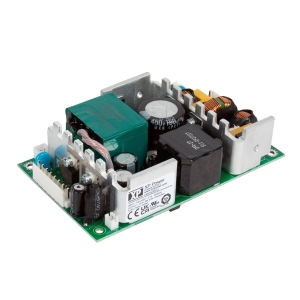

  • GCS150 Series

    Features

    • Single outputs from 12V to 48VDC
    • Universal 85 to 264VAC input range
    • ITE and medical safety approvals (Class I & II)
    • <0.5W standby power
    • Class B emissions
    • Remote on/off optional
    • Overcurrent, overvoltage and short-circuit protection
    • Operating temperature range from -40°C to +70°C
    • 3 year warranty
    The GCS150 is a series of medical AC-DC power supplies with 150W fan cooled and 110W convection rating.

    Designed to minimize no load power consumption, the GCS150 series of high efficiency, single-output power supplies are packaged in an industry standard 5.0” x 3.0” x 1.42”package making them suitable for medical, industrial, information technology and domestic applications. Class I and Class II versions are available, allowing use in professional healthcare facilities such as hospitals and remotely in patients’ homes or workplaces.

    With a wide range of international medical safety and ITE approvals, class B compliance for conducted and radiated emissions, very low earth leakage currents, and 2 x MOPP protection, the GCS150 benefits system designers with easy integration into a wide range of applications.

    Inquiry Info. PDF

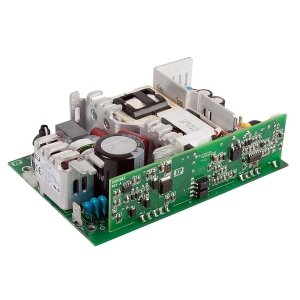

  • GCS180 Series

    Features

    • Single outputs from 12V to 48VDC
    • Universal 85 to 264VAC input range
    • ITE and medical safety approvals (Class I & II)
    • <0.5W standby power
    • Class B emissions
    • Remote on/off optional, 12VDC 0.6A fan supply
    • Overcurrent, overvoltage and short-circuit protection
    • Operating temperature range from -40°C to +70°C
    • 3 year warranty
    The GCS180 series has been designed to minimise the no load power consumption and maximise efficiency in order to facilitate equipment design to the latest environmental legislation.

    Approved for Class I and Class II applications, this range of single output AC-DC power supplies are packaged in an industry standard 5.0” x 3.0” x 1.42” package and achieves EN55011/32 Level B emissions compliance whilst maintaining very low earth leakage currents, making them suitable for a wide range of 1U and other industrial electronics, ITE and medical applications.

    Inquiry Info. PDF

  • GCS250 Series

    Features

    • Single outputs from 12V to 56VDC
    • Universal 85 to 264VAC input range
    • High efficiency – up to 93%
    • ITE and medical safety approvals (Class I & II)
    • 4kVAC input to output isolation
    • Class B conducted emissions
    • Remote on/off option, 12VDC 0.6A fan supply
    • Overcurrent, overvoltage and short-circuit protection
    • Operating temperature range from -40°C to +70°C
    The GCS250 is a series of medical AC-DC power supplies with 250W fan cooled and 180W convection rating.

    Designed to minimize no load power consumption, the GCS250 series of high efficiency, single-output power supplies are packaged in an industry standard 5.0” x 3.0” x 1.42” package making them suitable for medical, industrial, information technology and domestic applications. Class I and Class II versions are available, allowing use in professional healthcare facilities such as hospitals and remotely in patients’ homes or workplaces.

    With a wide range of international medical safety and ITE approvals, class B compliance for conducted and radiated emissions, very low earth leakage currents, and 2 x MOPP protection, the GCS250 benefits system designers with easy integration into a wide range of applications

    Inquiry Info. PDF

  • GCS265 Series

    Features

    • Single outputs from 12V to 48VDC
    • Universal 85 to 264VAC input range
    • High efficiency – up to 93%
    • ITE and medical safety approvals (Class I & II)
    • 4kVAC input to output isolation
    • Class B conducted emissions
    • 5V/3A Standby Output
    • Remote on/off option, remote sense and DC OK signal
    • Overcurrent, overvoltage and short-circuit protection
    • Operating temperature range from -40°C to +70°C

    The GCS265 is a series of medical AC-DC power supplies with 265W fan cooled and 180W convection rating.

    Designed to minimize no load power consumption, the GCS265 series of high efficiency, single-output power supplies are packaged in a 5.0” x 3.5” x 1.43” package making them suitable for medical, industrial, information technology and domestic applications. Class I and Class II versions are available, allowing use in professional healthcare facilities such as hospitals and remotely in patients’ homes or workplaces.

    GCS265 also features a DC OK signal for remote monitoring, remote On/Off and a 5VDC/3A isolated auxiliary supply. With a wide range of international medical safety and ITE approvals, class B compliance for conducted and class A radiated emissions, very low earth leakage currents, and 2 x MOPP protection, the GCS265 benefits system designers with easy integration into a wide range of applications.

    Inquiry Info. PDF

  • GCS350 Series

    Features

    • Single outputs from 12V to 56VDC
    • Universal 85 to 264VAC input range
    • High efficiency – up to 93%
    • ITE and medical safety approvals (Class I & II)
    • 4kVAC input to output isolation
    • Class B conducted emissions
    • Remote On/Off, 12VDC 0.6A fan supply
    • Overcurrent, overvoltage and short-circuit
    • protection
    • -40°C to +70°C operating temperature
    • 3 year warranty
    The GCS350 is a series of medical AC-DC power supplies with 350W fan cooled and 200W convection rating.

    Designed to minimize no load power consumption, the GCS350 series of high efficiency, single-output power supplies are packaged in an industry standard 127.0 x 76.2 x 36.3mm package making them suitable for medical, industrial, information technology and domestic applications. Class I and Class II versions are available, allowing use in professional healthcare facilities such as hospitals and remotely in patients’ homes or workplaces.

    With a wide range of international medical safety and ITE approvals, class B compliance for conducted and radiated emissions, very low earth leakage currents, and 2 x MOPP protection, the GCS350 benefits system designers with easy integration into a wide range of applications.

    Inquiry Info. PDF

  • HBU250 HEU250 HEU250A Series

    Features

    • Wide Operating Voltage, 85 to 264VAC, 47 to 63 Hz
    • Single Output from 12V to 48V
    • Protection: OVP, OLP, OTP, SCP
    • Size: 2″x 4″x 1.28″, 24.41W/in³
    • Input to Output:2MOPP
    • 3-Year Warranty for Power Supply
    • Efficiency Up to 93%
    • Peak 300W(90 to 264 VAC) (See FIG.3 On Page 2)
    • High Surge Immunity
    HBU250/HEU250/HEU250A Series, 250 Watts, Open PCB or Enclosed, 7 Models 12V to 48V DC Outputs

    Inquiry Info. PDF
