• DC-DC Converters PCB Mounting 0.25W to 60W

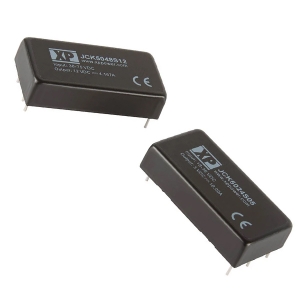

  • JCK50 Series

    Features

    • Regulated single outputs 3.3, 5, 12 & 15VDC
    • Outputs trimmable ±10%
    • 2:1 input range
    • 50.8 x 25.4mm (2” x 1”) footprint, 11.5mm (0.45”) package
    • 1.6kVDC isolation
    • Remote On/Off
    • Continuous short circuit protection
    • Optional heatsink
    • -40°C to +95°C operating temperature
    • Full power to +50°C
    • 3 year warranty
    JCK50 Series 50 Watts, 50.8 x 25.4 metal package, 2:1, 12V, 24V or 48V DC Input, Single regulated output versions from 3.3V to 15V DC, 1.6kVDC isolation, Outputs ±10% trim adjustable, Remote On/Off

    Inquiry Info. PDF

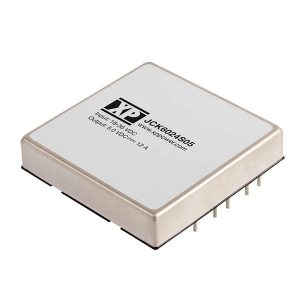

  • JCK60 Series

    Features

    • Regulated single outputs 3.3 to 15VDC
    • 2:1 input range
    • 50.4 x 50.4mm (2” x 2”) Footprint, 10.2mm profile
    • Output Trim ±10%
    • 1.6kVDC isolation
    • Over current, over voltage & over temperature protection
    • Remote On/Off
    • -40°C to +85°C operating temperature
    • Full power to +50°C
    • 3 year warranty
    JCK60 Series 60 Watts, 50.8 x 50.8 metal package, 2:1, 24V or 48V DC Input, Single regulated output versions from 3.3V to 15V DC, 1.6kVDC isolation, Outputs ±10% trim adjustable, Remote On/Off

    Inquiry Info. PDF

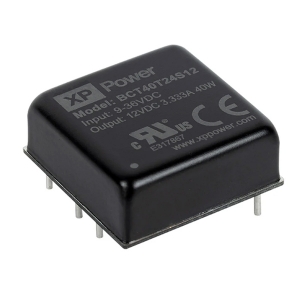

  • BCT40

    Features

    • Single regulated outputs from 3.3V to 24VDC
    • Dual regulated outputs ±12V & ±15VDC
    • 4:1 wide input voltage range
    • 25.4 x 25.4mm (1" x 1") compact package
    • 2kVDC isolation
    • UL62368-1 & EN62368-1 safety approvals
    • Continuous short circuit protection
    • Remote on/off
    • -40°C to +105°C operation temperature
    • 3 year warranty
    BCT40 Series 40 Watts, 25.4 x 25.4 metal case, 4:1 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 24V DC. 2kVDC isolation, Single outputs ±10% trim adjustable, Remote On/Off

    Inquiry Info. PDF

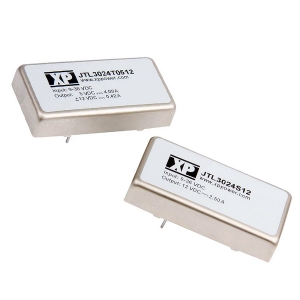

  • JTL30

    Features

    • Regulated single outputs 5 to 15VDC
    • Regulated dual outputs ±12 & ±15VDC
    • Regulated triple outputs +3 or +5 with
    • ±12 & ±15VDC
    • 4:1 input range
    • 50.8 x 25.4mm (2” x 1”) footprint, 10.16mm profile
    • Output trim ±10% (single O/P)
    • 1.6kVDC isolation
    • Remote On/Off
    • Optional heatsink
    • -40°C to +75°C operating temperature
    • Full power to +50°C
    • 3 year warranty
    JTL30 Series 30 Watts, 50.8 x 25.4 metal package, 4:1 24V or 48V DC Input, Single, dual & triple regulated output versions from 3.3V to 15V DC. 1.6kVDC isolation, Single outputs ±10% trim adjustable, Remote On/Off

    Inquiry Info. PDF

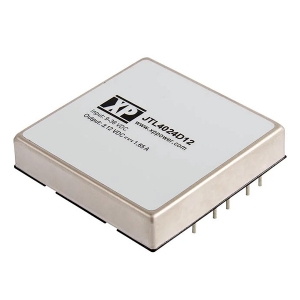

  • JTL40

    Features

    • Regulated single outputs 5 to 15VDC
    • Regulated dual outputs ±12 & ±15VDC
    • 4:1 input range
    • 50.8 x 50.8mm (2” x 2”) Footprint, 10.2mm profile
    • Output trim ±10% (single O/P)
    • 1.6kVDC isolation
    • Remote On/Off
    • -40°C to +85°C operating temperature
    • Full power to +45°C
    • 3 year warranty
    JTL40 Series 40 Watts, 50.8 x 50.8 metal package, 4:1 24V or 48V DC Input, Single & dual regulated output versions from 3.3V to 15V DC, 1.6kVDC isolation, Single outputs ±10% trim adjustable, Remote On/Off

    Inquiry Info. PDF

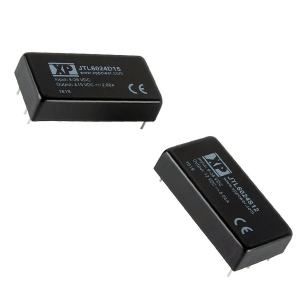

  • JTL60

    Features

    • Regulated single outputs 5 to 15VDC
    • Regulated dual outputs ±12 & ±15VDC
    • 4:1 input range
    • 50.8 x 25.4mm (2” x 1”) footprint, 11.5mm (0.45”) profile
    • Output trim ±10% (single O/P)
    • 1.6kVDC isolation
    • Remote On/Off
    • -40°C to +85°C operating temperature
    • Full power to +45°C
    • 3 year warranty
    JTL60 Series 60 Watts, 50.8 x 25.4 metal package, 4:1 24V or 48V DC Input, Single & dual regulated output versions from 5V to 15V DC, 1.6kVDC isolation, Single outputs ±10% trim adjustable, Remote On/Off

    Inquiry Info. PDF

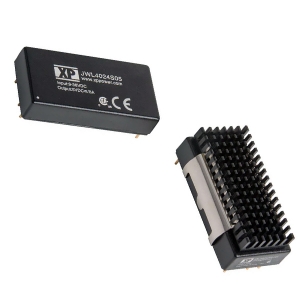

  • JWL40 Series

    Features

    • Regulated single outputs 3.3 to 24VDC
    • Regulated dual outputs ±12 & ±15VDC
    • 4:1 input range
    • 50.8 x 25.4mm (2” x 1”) footprint, 11.0mm profile
    • 1.5kVDC isolation
    • Remote On/Off
    • Optional Heatsink
    • -40°C to +105°C operating temperature
    • Full power to +40°C
    • 3 year warranty
    JWL40 Series 40 Watts, 50.8 x 25.4 metal package, 4:1 24V or 48V DC Input, Single & dual regulated output versions from 3.3V to 15V DC, 1.6kVDC isolation, Single outputs ±10% trim adjustable, Remote On/Off

    Inquiry Info. PDF

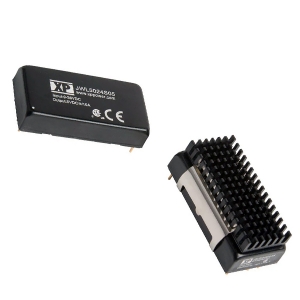

  • JWL50 Series

    Features

    • Regulated single outputs 3.3 to 24VDC
    • 4:1 input range
    • 50.8 x 25.4mm (2” x 1”) footprint, 11.5mm (0.45”) profile
    • 1.5kVDC isolation
    • Remote On/Off
    • Optional heatsink
    • -40°C to +105°C operating temperature
    • Full power to +46°C
    • 3 year warranty
    JWL50 Series 50 Watts, 50.8 x 25.4 metal package, 4:1 24V or 48V DC Input, Single regulated output versions from 3.3V to 15V DC, 1.6kVDC isolation, Outputs ±10% trim adjustable, Remote On/Off

    Inquiry Info. PDF

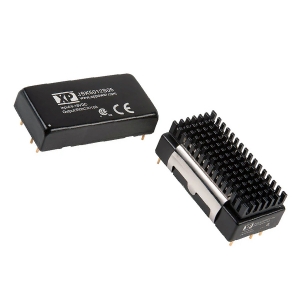

  • JSK50

    Features

    • Regulated Single Output
    • 2:1 Input Range
    • 2” x 1” Package
    • 1500 VDC Isolation
    • Operating Temperature -40 °C to +105 °C
    • ITE Safety Approvals
    • Remote On/Off
    • High Power Density
    • Optional Heatsink
    • Six-sided Metal Case
    • 3 Year Warranty
    JSK50 Series 50 Watts, 50.8 x 25.4 metal package, 2:1, 12V, 24V or 48V DC Input, Single regulated output versions from 3.3V to 24V DC, 1.6kVDC isolation, Outputs ±10% trim adjustable, Remote On/Off

    Inquiry Info. PDF

  • ICZ09 Series

    Features

    • Ultra Compact SIP8 Package
    • Smallest Footprint 9W Converter
    • Single & Dual Outputs
    • 2:1 Input Range
    • Operating Temperature -40°C to +85°C
    • 1.6kVDC Input to Output Isolation
    • Fully Regulated Output

    Inquiry Info. PDF

Total of 123 results
