• DC-DC Converters PCB Mounting 0.25W to 60W

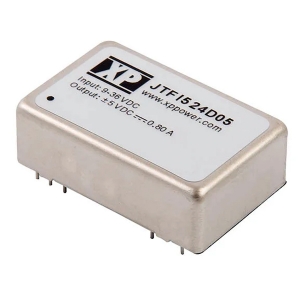

  • JTF15 Series

    Features

    • Regulated single & dual outputs
    • 4:1 input range
    • Single outputs 3.3 to 15VDC
    • Dual outputs ±5.0 to ±15VDC
    • DIP24 metal case
    • 1.6kVDC isolation
    • Remote On/Off
    • -40°C to +85°C operating temperature
    • Full power to +60°C
    • 3 year warranty
    JTF15 Series 15 Watts, DIP24 metal package, 4:1 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.6kVDC isolation. Remote On/Off

    Inquiry Info. PDF

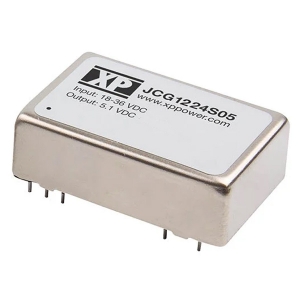

  • JCG12 Series

    Features

    • Regulated single & dual outputs
    • 2:1 input range
    • Single outputs 2.5 to 15VDC
    • Dual outputs ±12 & ±15VDC
    • DIP24 package, metal case option
    • 1.6kVDC isolation
    • Remote On/Off
    • -40°C to +100°C operating temperature
    • Full power to +60°C
    • 3 year warranty
    JCG12 Series 12 Watts, DIP24 metal package, 2:1,12V, 24V or 48V DC Input, Single and dual regulated output versions from 2.5V to 15V DC. 1.6kVDC isolation. Remote On/Off

    Inquiry Info. PDF

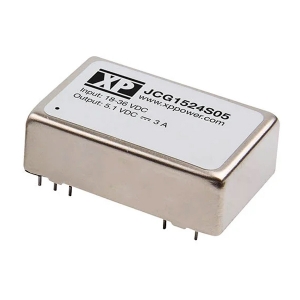

  • JCG15 Series

    Features

    • Regulated single & dual outputs
    • 2:1 input range
    • Single outputs 3.3 to 15VDC
    • Dual outputs ±5, ±12 & ±15VDC
    • DIP24 package, metal case option
    • 1.6kVDC isolation
    • Remote On/Off
    • -40°C to +100°C operating temperature
    • Full power to +60°C
    • 3 year warranty
    JCG15 Series 15 Watts, DIP24 metal package, 2:1,12V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.6kVDC isolation. Remote On/Off

    Inquiry Info. PDF

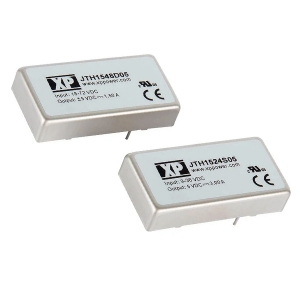

  • JTH15 Series

    Features

    • 4:1 Input Range
    • 1500 VDC Isolation
    • Efficiency up to 86%
    • -40 °C to +100 °C Operating Temperature
    • UL Approved
    • Optional Remote On/Off
    • Single & Dual Outputs
    • 3 Year Warranty
    JTH15 Series 15 Watts, 25.4 x 50.8 metal package, 4:1 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.5kVDC isolation. Optional Remote On/Off

    Inquiry Info. PDF

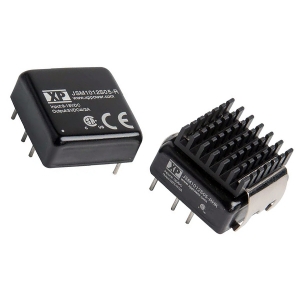

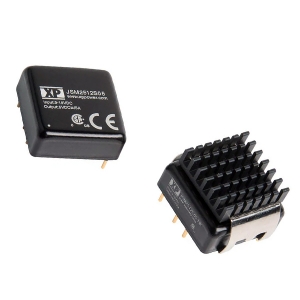

  • JSM10 Series

    Features

    • Regulated single outputs from 3.3 to 15VDC
    • Regulated dual outputs ±12 & ±15VDC
    • 2:1 input range
    • Input ranges 9 to 18, 18 to 36, 36 to 75VDC
    • 25.4 x 25.4mm (1″x 1″) package, 10.2mm profile
    • 1.5kVDC isolation
    • Optional remote On/Off
    • Optional heatsink
    • -40°C to +100°C operating temperature
    • Full power to +65°C
    • 3 year warranty
    JSM10 Series 10 Watts, 25.4 x 25.4 metal package, 2:1,12V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.5kVDC isolation. Optional Remote On/Off

    Inquiry Info. PDF

  • JSM25 Series

    Features

    • Regulated single outputs from 3.3 to 15VDC
    • Regulated dual outputs ±12 & ±15VDC
    • 2:1 input range
    • Input ranges 9 to 18, 18 to 36, 36 to 75VDC
    • 25.4 x 25.4mm (1″x 1″) package, 10.2mm (0.4″) profile
    • 1.5kVDC isolation
    • Optional remote On/Off
    • Optional heatsink
    • -40°C to +105°C operating temperature
    • Full power to +50°C
    • 3 year warranty
    JSM25 Series 25 Watts, 25.4 x 25.4 metal package, 2:1,12V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.5kVDC isolation. Optional Remote On/Off

    Inquiry Info. PDF

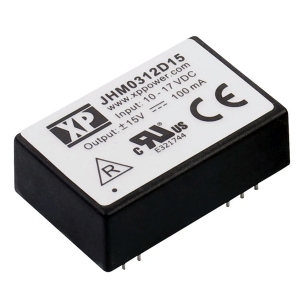

  • JHM03 Series

    Features

    • Regulated single & dual outputs
    • 1.5:1 input range
    • Single outputs 5.0 to 15VDC
    • Dual outputs ±12 & ±15VDC
    • DIP24 package
    • International medical safety approvals
    • 3.0kVAC reinforced isolation
    • 2μA patient leakage current
    • EN55011 Class A with no external components
    • -20°C to +100°C operating temperature
    • Full power to +60°C
    • 3 year warranty
    JHM03 Series 3 Watts, DIP24 plastic package, 10-17V or 20-30V DC Input, Single and dual regulated output versions from 5V to 15V DC. Outputs ±10% trim adjustable. 3.0kVAC reinforced isolation.

    Inquiry Info. PDF

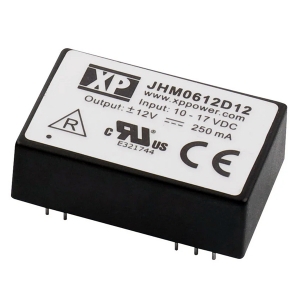

  • JHM06 Series

    Features

    • Regulated single & dual outputs
    • 1.5:1 input range
    • Single outputs 5.0 to 15VDC
    • Dual outputs ±12 & ±15VDC
    • DIP24 package
    • International medical safety approvals
    • 3.0kVAC reinforced isolation
    • 2μA patient leakage current
    • EN55011 Class A with no external components
    • -20°C to +100°C operating temperature
    • Full power to +60°C
    • 3 year warranty
    JHM06 Series 6 Watts, DIP24 plastic package, 10-17V or 20-30V DC Input, Single and dual regulated output versions from 5V to 15V DC. Outputs ±10% trim adjustable. 3.0kVAC reinforced isolation.

    Inquiry Info. PDF

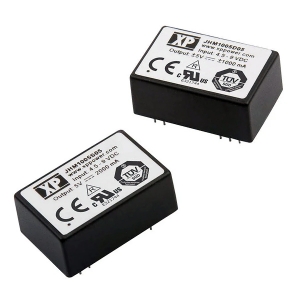

  • JHM10 Series

    Features

    • International Medical Approvals
    • 4000 VAC Reinforced Insulation
    • Meets IEC60601-1
    • 2 μA Patient Leakage Current
    • DIP-24 Package
    • EN55011 Level A With No External Components
    • 3 Year Warranty
    JHM10 Series 10 Watts, DIP24 plastic package, 2:1 5V, 12V or 24V DC Input, Single and dual regulated output versions from 5V to 15V DC. Outputs ±10% trim adjustable. 4.0kVAC reinforced isolation.

    Inquiry Info. PDF

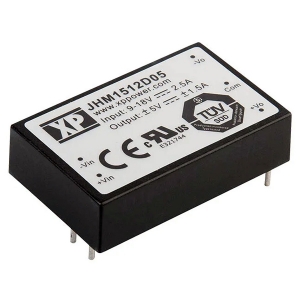

  • JHM15 Series

    Features

    • International Medical Approvals
    • 4000 VAC Reinforced Insulation
    • 2 x MOPP
    • Medical Approval, IEC60601-1, 3rd Edition
    • 2 μA Patient Leakage Current
    • Compact 1 x 1.6” Footprint
    • EN55011 Level A With No External Components
    • 3 Year Warranty
    JHM15 Series 15 Watts, 40.6 x 25.4 plastic package, 2:1, 12V or 24V DC Input, Single and dual regulated output versions from 5V to 15V DC. Outputs ±10% trim adjustable. 4.0kVAC reinforced isolation.

    Inquiry Info. PDF

Total of 117 results
