• DC-DC Converters PCB Mounting 0.25W to 60W

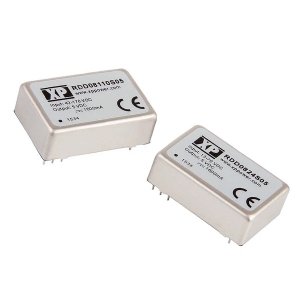

  • RDD08

    Features

    • Wide Input Range for Railway Applications
    • Single and Dual Outputs
    • DIP24 Package
    • -40 °C to +85 °C Operation
    • Full Load at 70 °C Ambient
    • 3000 VDC Isolation
    • MTBF >800 kHrs
    • 3 Year Warranty
    • EN50155 Approval for Railway Applications
    • EN50121-3-2 EMC for Railway Applications
    RDD08 Series 8 Watts, DIP24 metal package, 13-70V or 42-176V DC Wide Input for Railway Applications, Single and dual regulated output versions from 3.3V to 15V DC. 3kVDC isolation. Remote On/Off

    Inquiry Info. PDF

  • RDD08

    Features

    • Wide Input Range for Railway Applications
    • Single and Dual Outputs
    • DIP24 Package
    • -40 °C to +85 °C Operation
    • Full Load at 70 °C Ambient
    • 3000 VDC Isolation
    • MTBF >800 kHrs
    • 3 Year Warranty
    • EN50155 Approval for Railway Applications
    • EN50121-3-2 EMC for Railway Applications
    RDD08 Series 8 Watts, DIP24 metal package, 13-70V or 42-176V DC Wide Input for Railway Applications, Single and dual regulated output versions from 3.3V to 15V DC. 3kVDC isolation. Remote On/Off

    Inquiry Info. PDF

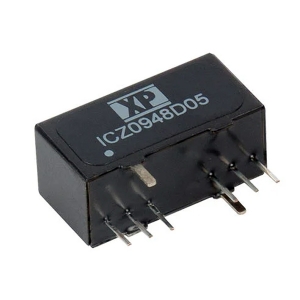

  • ICZ09

    Features

    • Regulated single & dual outputs
    • 2:1 input range
    • Single outputs 3.3 to 24VDC
    • Dual outputs ±5.0 to ±15VDC
    • SIP8 package
    • 1.6kVDC isolation
    • Remote On/Off
    • No minimum load
    • -40°C to +85°C operating temperature
    • Full power to +60°C
    • 3 year warranty
    ICZ09 Series 9 Watts, SIP8 Copper package, 2:1,12V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 24V DC. 1.6kVDC isolation. Remote On/Off.

    Inquiry Info. PDF

  • ICZ09

    Features

    • Regulated single & dual outputs
    • 2:1 input range
    • Single outputs 3.3 to 24VDC
    • Dual outputs ±5.0 to ±15VDC
    • SIP8 package
    • 1.6kVDC isolation
    • Remote On/Off
    • No minimum load
    • -40°C to +85°C operating temperature
    • Full power to +60°C
    • 3 year warranty
    ICZ09 Series 9 Watts, SIP8 Copper package, 2:1,12V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 24V DC. 1.6kVDC isolation. Remote On/Off.

    Inquiry Info. PDF

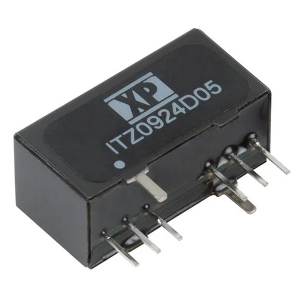

  • ITZ09

    Features

    • Regulated single & dual outputs
    • 4:1 input range
    • Single outputs 3.3 to 24VDC
    • Dual outputs ±5.0 to ±15VDC
    • SIP8 package
    • 1.5kVDC isolation
    • Remote On/Off
    • No minimum load
    • -40°C to +85°C operating temperature
    • Full power to +50°C
    • 3 year warranty
    ITZ09 Series 9 Watts, SIP8 Copper package, 4:1 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 24V DC. 1.5kVDC isolation. Remote On/Off.

    Inquiry Info. PDF

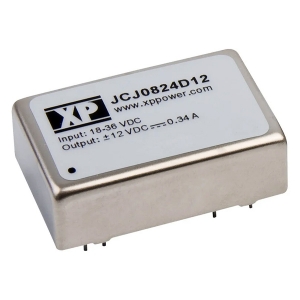

  • JCJ08

    Features

    • Regulated single & dual outputs
    • 2:1 input range
    • Single outputs 3.3 to 15VDC
    • Dual outputs ±5.0 to ±15VDC
    • DIP24 metal case
    • 1.5kVDC isolation
    • -40°C to +100°C operating temperature
    • Full power to +60°C
    • 3 year warranty
    JCJ08 Series 8 Watts, DIP24 metal package, 2:1,12V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.5kVDC isolation.

    Inquiry Info. PDF

  • JCJ10

    Features

    • Regulated single & dual outputs
    • 2:1 input range
    • Single outputs 2.5 to 15VDC
    • Dual outputs ±12 & ±15VDC
    • DIP24 metal case
    • 1.5kVDC isolation
    • -40°C to +100°C operating temperature
    • Full power to +60°C
    • 3 year warranty
    JCJ10 Series 10 Watts, DIP24 metal package, 2:1,12V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.5kVDC isolation.

    Inquiry Info. PDF

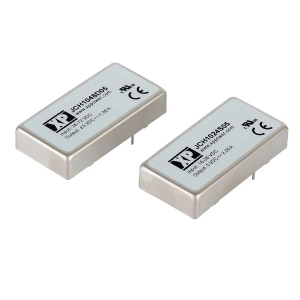

  • JCH10

    Features

    • 2:1 Input Range
    • Industry Standard Package
    • 1500 VDC Isolation
    • Continuous Short Circuit Protection
    • -40 °C to +100 °C Operating Temperature
    • UL Approved
    • Single & Dual Outputs
    • 3 Year Warranty
    JCH10 Series 10 Watts, 25.4 x 50.8 metal package, 2:1,12V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 24V DC. 1.5kVDC isolation.

    Inquiry Info. PDF

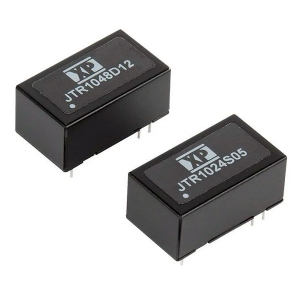

  • JTR10

    Features

    • Regulated single outputs from
    • Wide 4:1 DC input range 9 to 36 or 18 to 75VDC
    • DIP16 metal case
    • Output voltage trim ±10% (single output models)
    • High efficiency up to 87%
    • IEC/UL/cUL 62368-1 safety approvals (pending)
    • Complies with EN55032 class A with no external components
    • -40°C to +85°C operating temperature
    • Full power to +70°C
    • MTB>500 khrs (MIL-HDBK-217F, +25°C GB)
    • 3 year warranty
    JTR10 Series 10 Watts, DIP16 metal package, 4:1 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.5kVDC isolation.

    Inquiry Info. PDF

  • JTF08

    Features

    • Regulated single & dual outputs
    • 4:1 input range
    • Single outputs 3.3 to 15VDC
    • Dual outputs ±5.0 to ±15VDC
    • DIP24 metal case
    • 1.6kVDC isolation
    • Remote On/Off
    • -40°C to +85°C operating temperature
    • Full power to +60°C
    • 3 year warranty
    JTF08 Series 8 Watts, DIP24 metal package, 4:1 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.6kVDC isolation. Remote On/Off

    Inquiry Info. PDF

Total of 123 results
